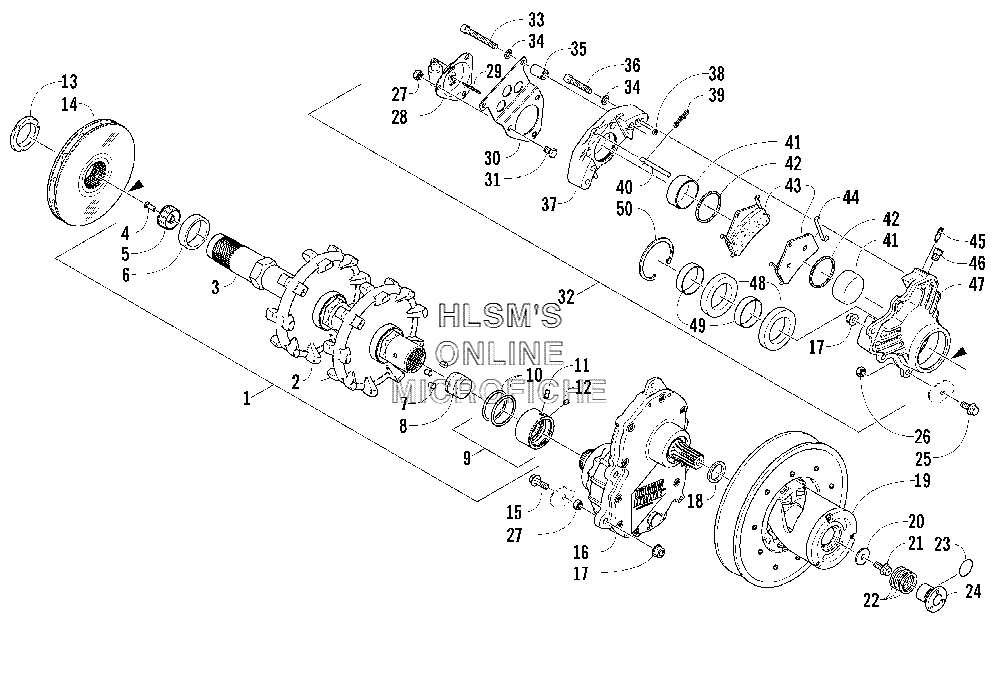

DRIVE TRAIN AND BRAKE ASSEMBLIES для Arctic Cat ZR 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10728-127 TRACK DRIVE ASSEMBLY (INC. 2, 12)TRACK DRIVE ASSEMBLY (INC. 2, 12)
-
21602-517 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-758 DRIVESHAFTDRIVESHAFT
-
40120-247 BUSHING, DRIVEBUSHING, DRIVE
-
51602-353 PLUG, DRIVESHAFTPLUG, DRIVESHAFT
-
61602-315 COLLARCOLLAR
-
71602-762 PIN, LOCKINGPIN, LOCKING
-
81602-765 PLUG, DRIVESHAFTPLUG, DRIVESHAFT
-
90702-656 COLLAR, LOCK (INC. 10, 12)COLLAR, LOCK (INC. 10, 12)
-
101602-764 O-RINGO-RING
-
111623-010 FITTING, GREASEFITTING, GREASE
-
128080-203 SCREW, SETSCREW, SET
-
131602-355 NUT, RETAININGNUT, RETAINING
-
141602-656 DISC, BRAKEDISC, BRAKE
-
158020-133 SCREW, CAPSCREW, CAP
-
160702-669 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
178048-426 NUT, LOCKNUT, LOCK
-
180648-442 WASHERWASHER
-
180648-443 WASHERWASHER
-
190726-176 CLUTCH, DRIVENCLUTCH, DRIVEN
-
201623-072 WASHERWASHER
-
211623-275 SCREW, CAPSCREW, CAP
-
220648-714 WASHERWASHER
-
220648-715 WASHERWASHER
-
220648-716 WASHERWASHER
-
230648-441 O-RINGO-RING
-
240648-440 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
258020-130 SCREW, CAPSCREW, CAP
-
268040-426 NUT, LOCKNUT, LOCK
-
278041-426 NUT, LOCKNUT, LOCK
-
280620-285 ADAPTER, DRIVEADAPTER, DRIVE
-
290120-248 CABLE, ADAPTERCABLE, ADAPTER
-
300720-016 BRACKET, MOUNTING, DRIVE ADAPTERBRACKET, MOUNTING, DRIVE ADAPTER
-
318002-127 SCREW, CAPSCREW, CAP
-
321602-357 CALIPER, BRAKE ASSEMBLY (INC. 33, 50)CALIPER, BRAKE ASSEMBLY (INC. 33, 50)
-
331602-670 SCREW, CAPSCREW, CAP
-
340402-165 WASHERWASHER
-
351602-515 SPACERSPACER
-
361602-671 SCREW, CAPSCREW, CAP
-
380602-729 O-RING, HOUSINGO-RING, HOUSING
-
391602-467 CLIP, HAIRPINCLIP, HAIRPIN
-
401602-464 PIN, RETAINING, BRAKE PADPIN, RETAINING, BRAKE PAD
-
411602-461 PISTONPISTON
-
421602-669 O-RINGO-RING
-
430702-563 PAD, BRAKE, SET (INC. 44)PAD, BRAKE, SET (INC. 44)
-
441602-466 CLIP, ANTI, RATTLECLIP, ANTI, RATTLE
-
451602-458 FITTING, BLEEDFITTING, BLEED
-
460602-590 FITTING, ADAPTERFITTING, ADAPTER
-
481602-462 BEARINGBEARING
-
491602-463 SLEEVE, DRIVESHAFTSLEEVE, DRIVESHAFT
-
501602-456 RING, RETAININGRING, RETAINING
