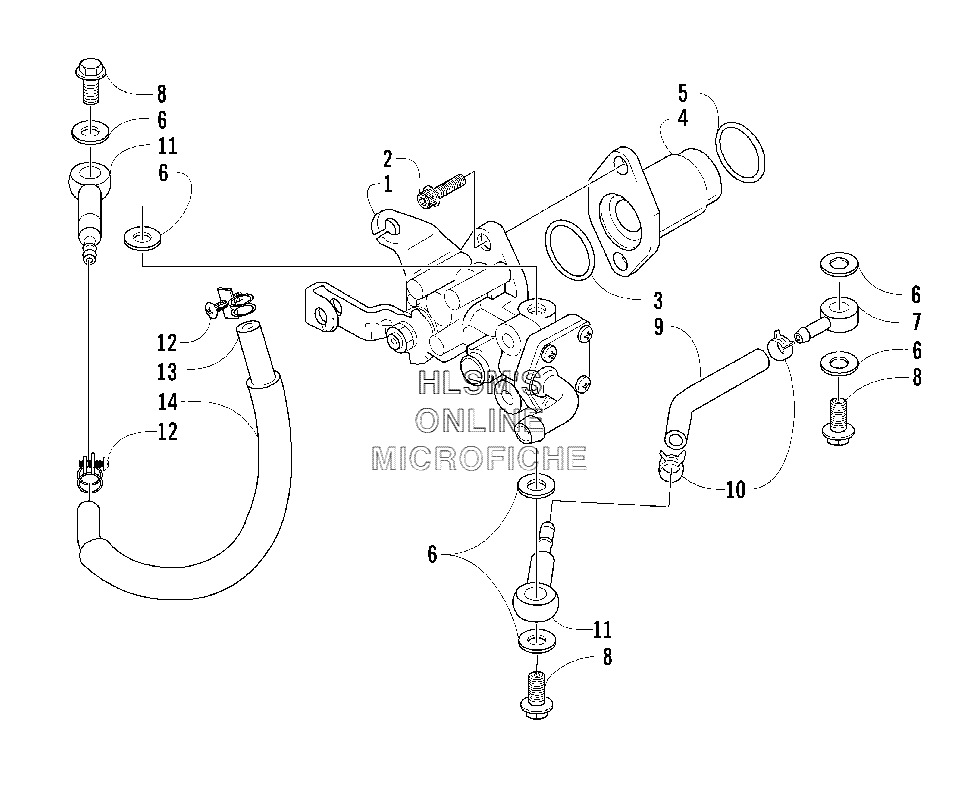

OIL PUMP для Arctic Cat ZR 900 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
13006-396 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
23004-893 BOLTBOLT
-
33008-030 O-RINGO-RING
-
43005-884 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
53005-126 O-RINGO-RING
-
63402-009 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
73003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
83004-346 BOLT, UNIONBOLT, UNION
-
93005-357 HOSE, OILHOSE, OIL
-
103008-037 CLAMP, HOSECLAMP, HOSE
-
113005-224 VALVE, CHECKVALVE, CHECK
-
123003-218 CLAMP, HOSECLAMP, HOSE
-
133005-225 HOSE, OILHOSE, OIL
-
143005-032 PROTECTOR, HOSE, OILPROTECTOR, HOSE, OIL
