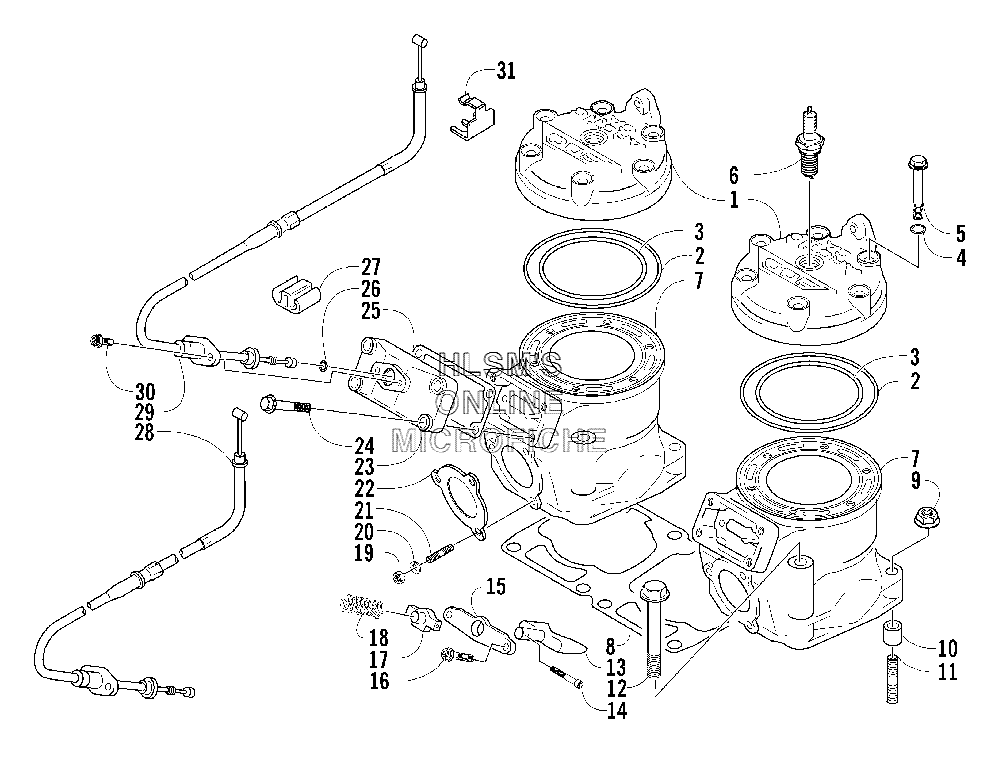

CYLINDER AND HEAD ASSEMBLY для Arctic Cat ZR 900 EFI (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
13006-390 HEAD, CYLINDERHEAD, CYLINDER
-
23004-081 O-RING, HEAD, OUTERO-RING, HEAD, OUTER
-
33005-854 O-RING, HEAD, INNERO-RING, HEAD, INNER
-
43003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
53006-538 BOLTBOLT
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73006-696 CYLINDERCYLINDER
-
83005-951 GASKET, CYLINDERGASKET, CYLINDER
-
93004-491 NUTNUT
-
103004-975 PIN, DOWELPIN, DOWEL
-
113005-847 BOLT, STUDBOLT, STUD
-
123005-846 BOLTBOLT
-
133006-697 VALVE, EXHAUSTVALVE, EXHAUST
-
143005-983 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
153005-861 PLATE, VALVE, EXHAUSTPLATE, VALVE, EXHAUST
-
163006-389 BOLTBOLT
-
173005-860 STOPPER, VALVE, EXHAUSTSTOPPER, VALVE, EXHAUST
-
183005-945 SPRINGSPRING
-
193004-334 NUTNUT
-
203004-280 WASHERWASHER
-
213004-279 BOLT, STUDBOLT, STUD
-
223005-880 GASKET, EXHAUSTGASKET, EXHAUST
-
233005-662 COVER, CYLINDERCOVER, CYLINDER
-
243004-426 BOLTBOLT
-
253005-283 GASKET, CYLINDER COVERGASKET, CYLINDER COVER
-
263005-226 O-RINGO-RING
-
273005-808 CLAMP, CABLECLAMP, CABLE
-
283006-695 CABLE, VALVE, EXHAUST (PTO)CABLE, VALVE, EXHAUST (PTO)
-
293006-694 CABLE, VALVE, EXHAUST (MAGNETO)CABLE, VALVE, EXHAUST (MAGNETO)
-
303005-744 BOLTBOLT
-
313005-747 HOLDER, CABLE, EXHAUST VALVEHOLDER, CABLE, EXHAUST VALVE
