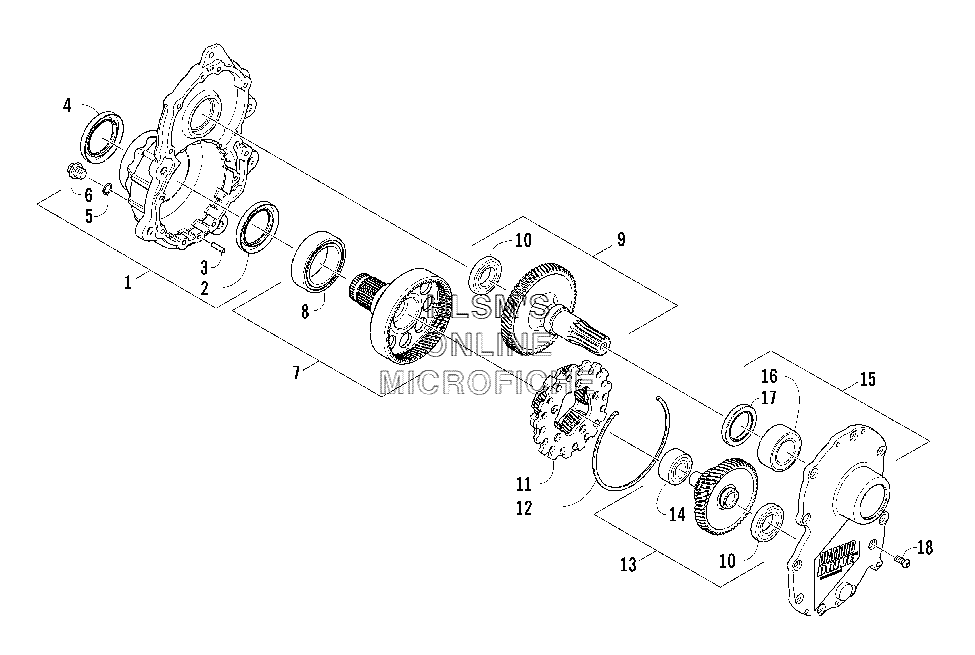

GEARCASE ASSEMBLY для Arctic Cat ZR 900 EFI (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
-0702-669 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
10702-662 GEARCASE (INC. 2, 6)GEARCASE (INC. 2, 6)
-
21602-344 SEAL, OILSEAL, OIL
-
31602-345 PIN, DOWELPIN, DOWEL
-
41602-766 SEAL, OILSEAL, OIL
-
51602-213 O-RINGO-RING
-
60623-293 PLUG, GEARCASEPLUG, GEARCASE
-
70702-645 GEAR, RING (76 TEETH) (INC. 8)GEAR, RING (76 TEETH) (INC. 8)
-
81602-318 BEARINGBEARING
-
90702-697 SHAFT, INPUT (66 TEETH) (INC. ONE NO. 10)SHAFT, INPUT (66 TEETH) (INC. ONE NO. 10)
-
101602-340 BEARINGBEARING
-
111602-349 GEAR, PLANETARY, 5 PINIONGEAR, PLANETARY, 5 PINION
-
121602-731 RING, RETAINING, PLANETARY GEARRING, RETAINING, PLANETARY GEAR
-
130702-703 GEAR, TRANSFER (54/34 TEETH) (INC. ONE NO. 10 AND 14)GEAR, TRANSFER (54/34 TEETH) (INC. ONE NO. 10 AND 14)
-
141602-348 BEARINGBEARING
-
150702-664 COVER, GEARCASE (INC. 16, 17)COVER, GEARCASE (INC. 16, 17)
-
161602-341 BEARINGBEARING
-
171602-342 SEAL, OILSEAL, OIL
-
181623-075 SCREW, MACHINESCREW, MACHINE
-
-3639-614 FLUID, GEARCASE, CASEFLUID, GEARCASE, CASE
