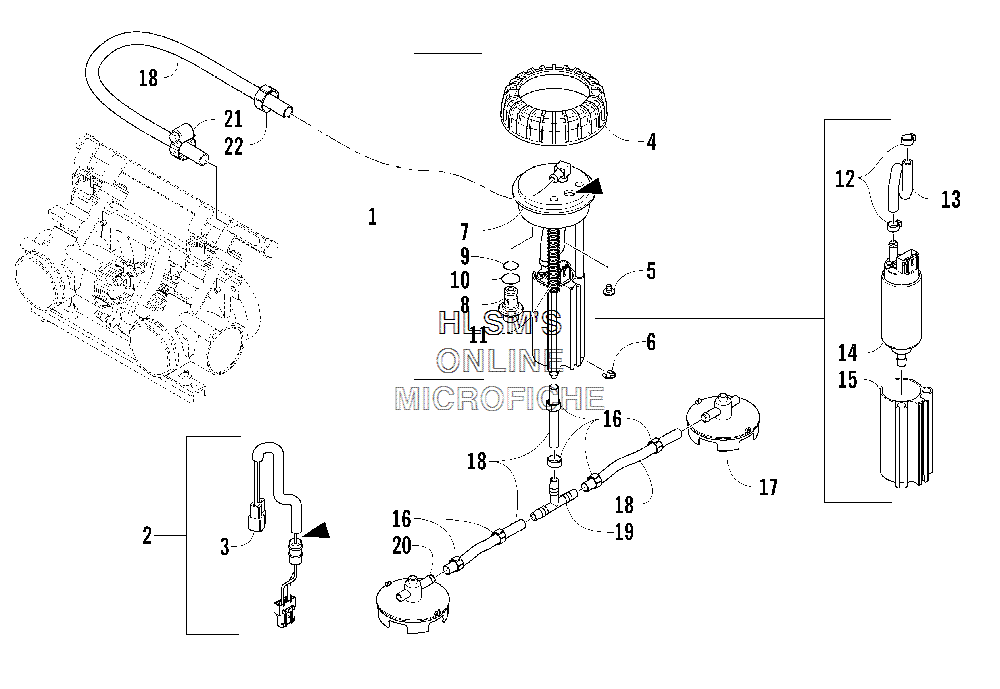

FUEL PUMP ASSEMBLY для Arctic Cat ZR 900 EFI SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11670-600 PUMP, FUEL, ASSEMBLY (INC. 2, 15)PUMP, FUEL, ASSEMBLY (INC. 2, 15)
-
21670-644 HARNESS, FUEL PUMP (INC. 3)HARNESS, FUEL PUMP (INC. 3)
-
30670-380 CONNECTOR, HARNESSCONNECTOR, HARNESS
-
41670-119 NUT, RETAINING, FUEL PUMPNUT, RETAINING, FUEL PUMP
-
51670-412 SCREW, MACHINE, HARNESSSCREW, MACHINE, HARNESS
-
61670-244 RING, RETAININGRING, RETAINING
-
71670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
81670-536 REGULATOR, FUEL PUMPREGULATOR, FUEL PUMP
-
91670-532 O-RINGO-RING
-
101670-533 O-RINGO-RING
-
111670-156 SPRING, FUEL PUMP ASSEMBLYSPRING, FUEL PUMP ASSEMBLY
-
121670-520 CLAMP, HOSECLAMP, HOSE
-
131670-521 HOSE, FUEL PUMP, TOPHOSE, FUEL PUMP, TOP
-
141670-153 PUMP, FUELPUMP, FUEL
-
151670-413 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
160610-563 CLAMP, HOSECLAMP, HOSE
-
171670-618 PICKUP, FUELPICKUP, FUEL
-
180610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
190670-235 T, FITTINGT, FITTING
-
201670-619 PICKUP, FUELPICKUP, FUEL
-
210623-373 CLAMP, HOSECLAMP, HOSE
-
220610-419 CLAMP, HOSECLAMP, HOSE
