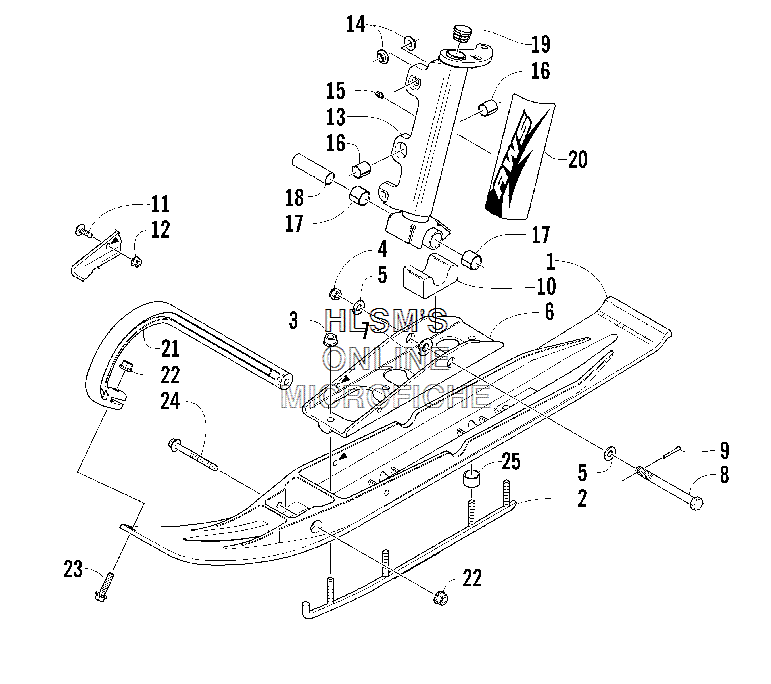

SKI AND SPINDLE ASSEMBLY для Arctic Cat ZR 900 EFI SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10703-958 SKI, PLASTICSKI, PLASTIC
-
20703-871 WEARBARWEARBAR
-
38047-486 NUT, LOCKNUT, LOCK
-
40123-296 NUT, LOCKNUT, LOCK
-
50623-728 WASHERWASHER
-
61703-501 SADDLE, SKI (INC. 7)SADDLE, SKI (INC. 7)
-
70603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
80623-552 SCREW, CAPSCREW, CAP
-
90123-458 PIN, COTTERPIN, COTTER
-
100603-036 DAMPER, SKIDAMPER, SKI
-
118017-581 SCREW, MACHINESCREW, MACHINE
-
128048-366 NUT, LOCKNUT, LOCK
-
131703-756 SPINDLE, STEERING (RIGHT) (INC. 14, 17)SPINDLE, STEERING (RIGHT) (INC. 14, 17)
-
131703-757 SPINDLE, STEERING (LEFT) (INC. 14, 17)SPINDLE, STEERING (LEFT) (INC. 14, 17)
-
140603-647 INSERT, SPINDLEINSERT, SPINDLE
-
151623-010 FITTING, GREASEFITTING, GREASE
-
160603-083 BEARINGBEARING
-
170603-158 BEARINGBEARING
-
180603-034 AXLE, SPINDLEAXLE, SPINDLE
-
190623-831 CAP, SPINDLECAP, SPINDLE
-
206611-344 DECAL, "AWS", SPINDLE (RIGHT)DECAL, "AWS", SPINDLE (RIGHT)
-
206611-345 DECAL, "AWS", SPINDLE (LEFT)DECAL, "AWS", SPINDLE (LEFT)
-
212603-377 HANDLE, PLASTICHANDLE, PLASTIC
-
228048-426 NUT, LOCKNUT, LOCK
-
238020-135 SCREW, CAPSCREW, CAP
-
248020-143 SCREW, CAPSCREW, CAP
-
251603-968 SPACERSPACER
