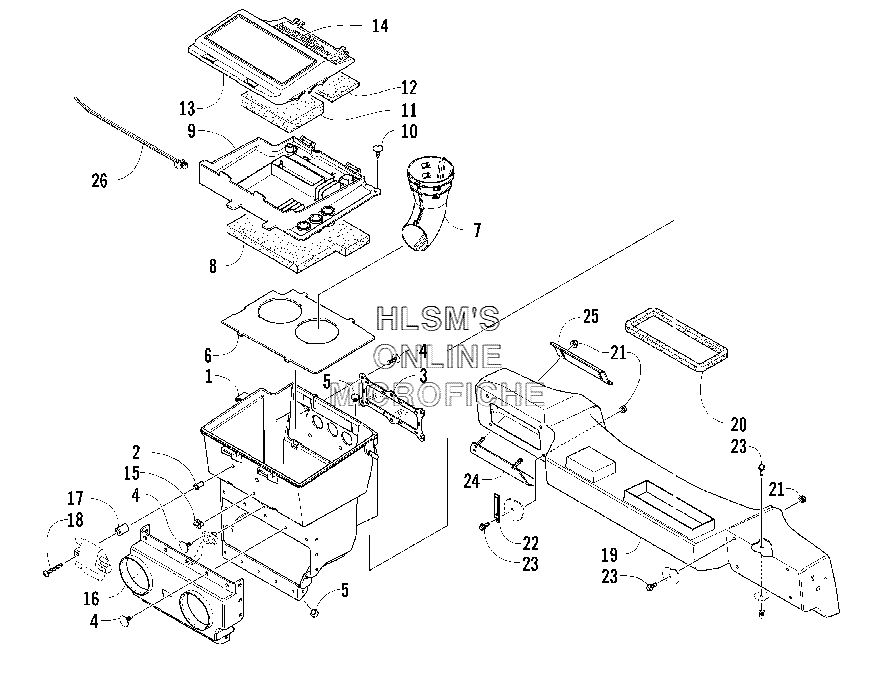

AIR SILENCER ASSEMBLY для Arctic Cat ZR 900 (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10770-671 SILENCER, AIR, ASSEMBLY (INC. 2, 3 AND SIX NO. 4)SILENCER, AIR, ASSEMBLY (INC. 2, 3 AND SIX NO. 4)
-
21623-127 INSERTINSERT
-
31670-517 SCREEN, AIR SILENCERSCREEN, AIR SILENCER
-
40623-165 CLIP, RETAININGCLIP, RETAINING
-
51606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
61670-461 BAFFLE, AIR SILENCERBAFFLE, AIR SILENCER
-
70670-617 FUNNEL, AIR SILENCERFUNNEL, AIR SILENCER
-
80617-430 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
90770-700 COVER, AIR SILENCERCOVER, AIR SILENCER
-
100623-727 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110617-439 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
120617-440 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
131670-425 COVER, TOOL TRAYCOVER, TOOL TRAY
-
146611-009 DECAL, ECUDECAL, ECU
-
150623-403 CLAMP, PUSH, MOUNTCLAMP, PUSH, MOUNT
-
161670-256 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
171623-045 SPACERSPACER
-
188017-406 SCREW, MACHINESCREW, MACHINE
-
191670-480 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
200617-436 SEAL, AIR SILENCER PLENUMSEAL, AIR SILENCER PLENUM
-
218048-366 NUT, LOCKNUT, LOCK
-
223002-964 CLAMP, WIRECLAMP, WIRE
-
238020-039 SCREW, CAPSCREW, CAP
-
241706-899 PLATE, ADJUSTABLEPLATE, ADJUSTABLE
-
252606-095 PLATE, BACKINGPLATE, BACKING
-
260623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
