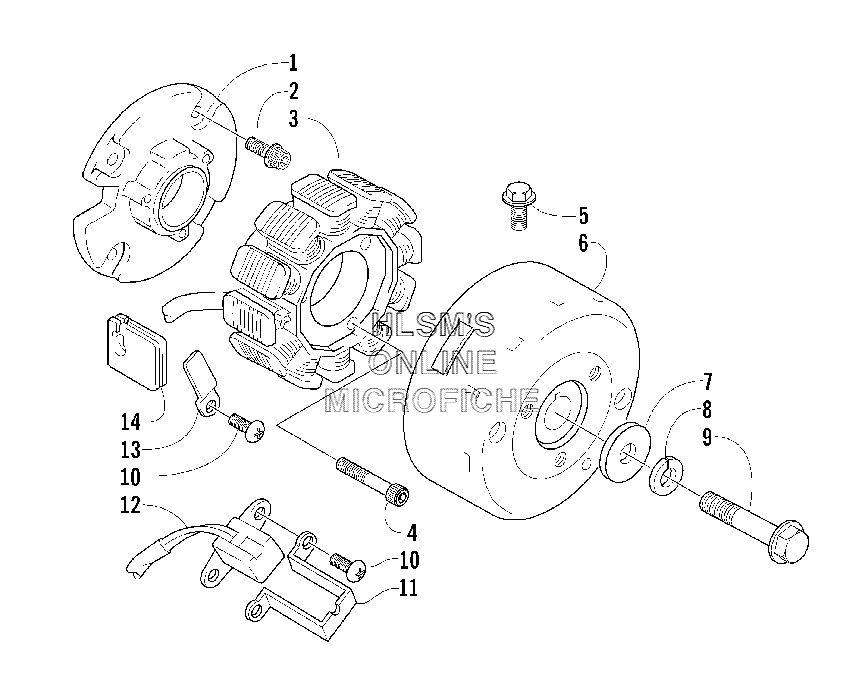

MAGNETO для Arctic Cat ZR 900 (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
13006-068 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
23004-378 BOLTBOLT
-
33006-403 STATOR ASSEMBLYSTATOR ASSEMBLY
-
43005-524 BOLTBOLT
-
53004-338 BOLTBOLT
-
63006-067 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
73005-987 WASHERWASHER
-
83004-362 WASHER, LOCKWASHER, LOCK
-
93006-476 BOLTBOLT
-
103004-706 SCREWSCREW
-
113003-972 CLAMP, IGNITION TIMING SENSORCLAMP, IGNITION TIMING SENSOR
-
123006-453 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
133005-960 CLAMPCLAMP
-
143008-034 GROMMET, MAGNETO LEAD WIREGROMMET, MAGNETO LEAD WIRE
