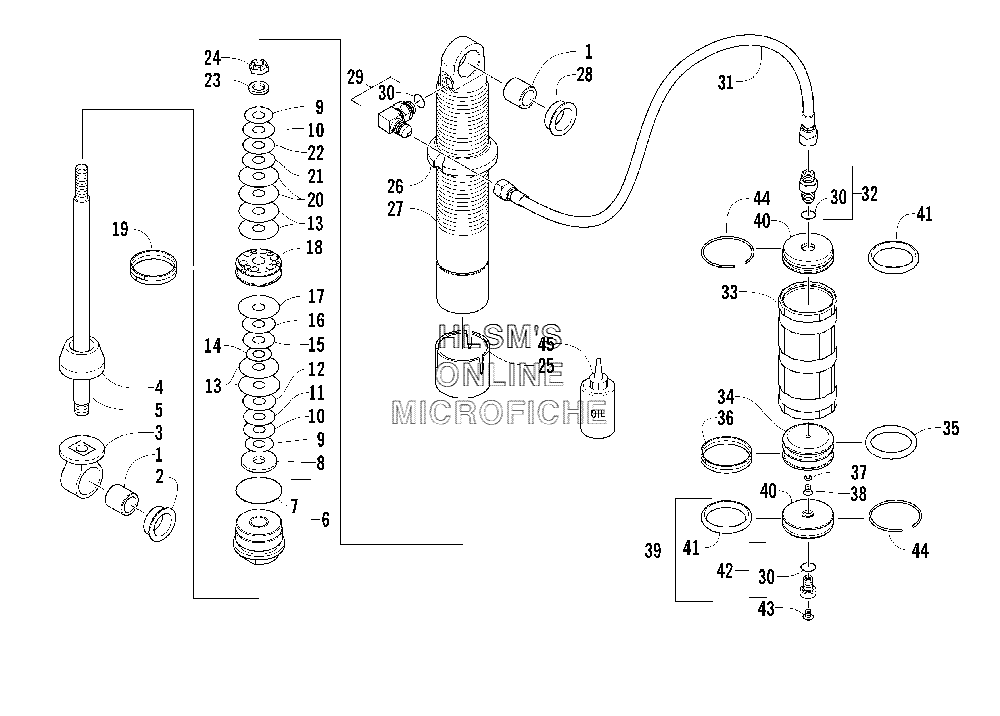

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat ZR 900 SNO PRO (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
11603-209 SLEEVE, EYELETSLEEVE, EYELET
-
20603-955 BUSHING, SHOCKBUSHING, SHOCK
-
31603-501 EYELET, SHOCKEYELET, SHOCK
-
40603-991 BUMPER, SHOCKBUMPER, SHOCK
-
52603-425 ROD, SHOCKROD, SHOCK
-
61703-452 END CAP, SHOCK (INC. 7)END CAP, SHOCK (INC. 7)
-
71604-271 O-RINGO-RING
-
81604-272 WASHER, TOP OUTWASHER, TOP OUT
-
92603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
102603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
112603-074 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
122603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
132603-122 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
142603-044 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
152603-062 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
162603-092 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
172603-132 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
181603-875 PISTON, 0.081 IN., ORIFICEPISTON, 0.081 IN., ORIFICE
-
191604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
202603-124 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
212603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
222603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
231604-273 WASHER, BACKUPWASHER, BACKUP
-
240623-696 NUT, LOCKNUT, LOCK
-
252603-012 SLEEVE, PROTECTORSLEEVE, PROTECTOR
-
261603-911 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
272604-424 BODY, SHOCKBODY, SHOCK
-
281603-914 BUSHING, SHOCKBUSHING, SHOCK
-
291604-533 FITTING, ELBOW (INC. ONE NO. 30)FITTING, ELBOW (INC. ONE NO. 30)
-
301604-284 O-RING, VALVEO-RING, VALVE
-
312603-423 HOSE, RESERVOIR/SHOCKHOSE, RESERVOIR/SHOCK
-
322604-422 FITTING, STRAIGHT (INC. ONE NO. 30)FITTING, STRAIGHT (INC. ONE NO. 30)
-
332604-792 BODY, RESERVOIRBODY, RESERVOIR
-
340603-986 PISTON, RESERVOIRPISTON, RESERVOIR
-
350603-987 O-RINGO-RING
-
360603-988 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
370423-182 O-RINGO-RING
-
380623-697 SCREW, PISTONSCREW, PISTON
-
390703-540 END CAP, RESERVOIR, ASSEMBLY (INC. ONE NO. 30, ONE NO. 40, 41, AND 42)END CAP, RESERVOIR, ASSEMBLY (INC. ONE NO. 30, ONE NO. 40, 41, AND 42)
-
400603-989 END CAP, RESERVOIR BODYEND CAP, RESERVOIR BODY
-
410603-968 O-RINGO-RING
-
420704-383 VALVE, PRESSURE (INC. ONE NO. 30)VALVE, PRESSURE (INC. ONE NO. 30)
-
430624-433 SCREW, MACHINESCREW, MACHINE
-
440603-985 RETAINER, END CAPRETAINER, END CAP
-
451639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
-1703-690 SHOCK ABSORBER ASSEMBLY (RIGHT)SHOCK ABSORBER ASSEMBLY (RIGHT)
-
-1703-691 SHOCK ABSORBER ASSEMBLY (LEFT)SHOCK ABSORBER ASSEMBLY (LEFT)
