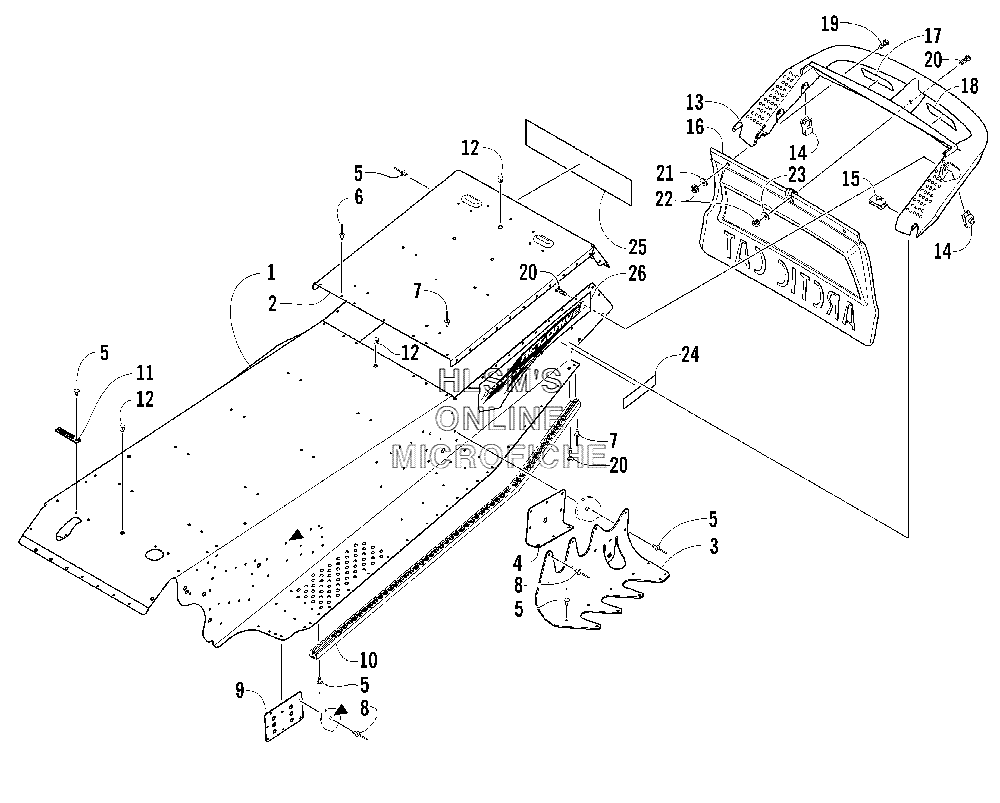

TUNNEL AND REAR BUMPER для Arctic Cat ZR 900 SNO PRO (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
11718-711 TUNNEL ASSEMBLY (INC. 2, 8)TUNNEL ASSEMBLY (INC. 2, 8)
-
22606-867 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
32606-238 BRACKET, MOUNTING SUSPENSION (REAR/RIGHT)BRACKET, MOUNTING SUSPENSION (REAR/RIGHT)
-
32606-239 BRACKET, MOUNTING SUSPENSION (REAR/LEFT)BRACKET, MOUNTING SUSPENSION (REAR/LEFT)
-
41706-854 PLATE, BACKING SUSPENSION (REAR)PLATE, BACKING SUSPENSION (REAR)
-
50123-418 RIVETRIVET
-
50623-806 RIVETRIVET
-
58060-506 RIVETRIVET
-
68060-684 RIVETRIVET
-
78060-484 RIVETRIVET
-
80623-072 RIVETRIVET
-
92706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
102606-426 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
102606-425 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
113002-964 CLAMP, WIRECLAMP, WIRE
-
120623-562 PLUG, HOLEPLUG, HOLE
-
131606-200 BUMPER (REAR)BUMPER (REAR)
-
140623-771 NUT, UNUT, U
-
150623-427 NUT, UNUT, U
-
161606-202 SNOWFLAPSNOWFLAP
-
161606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
175611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
185611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
198017-579 SCREW, CAPSCREW, CAP
-
208017-580 SCREW, MACHINESCREW, MACHINE
-
210623-184 WASHERWASHER
-
228048-366 NUT, LOCKNUT, LOCK
-
238050-217 WASHERWASHER
-
240411-647 DECAL, REFLECTOR (RED)DECAL, REFLECTOR (RED)
-
254611-112 DECAL, TUNNEL (REAR)DECAL, TUNNEL (REAR)
-
266611-376 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
266611-377 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
