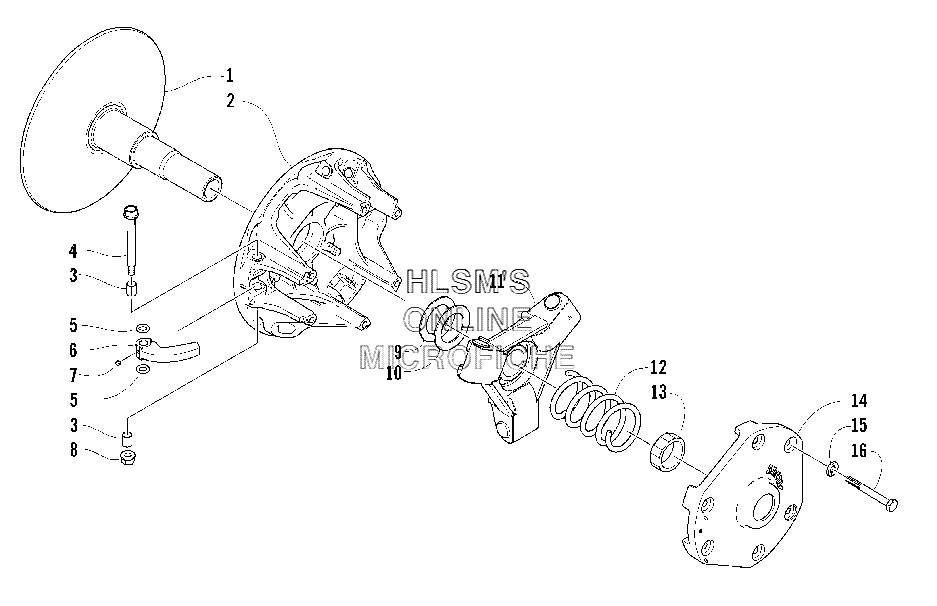

DRIVE CLUTCH для Arctic Cat Bearcat 570 LONG TRACK INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
10646-276 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-161 SHEAVE, MOVABLE (INC. 3)SHEAVE, MOVABLE (INC. 3)
-
30646-372 BEARINGBEARING
-
40646-747 PIN, CAM ARMPIN, CAM ARM
-
51602-692 O-RINGO-RING
-
60746-687 ARM, CAM (INC. 7)ARM, CAM (INC. 7)
-
60746-692 ARM, CAM (INC. 7) (OVER 6, 000 FT ALT.)ARM, CAM (INC. 7) (OVER 6, 000 FT ALT.)
-
71623-183 SCREW, SETSCREW, SET
-
88048-366 NUT, LOCKNUT, LOCK
-
90646-377 WASHER, SPACERWASHER, SPACER
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-115 SPIDER ASSEMBLYSPIDER ASSEMBLY
-
120646-149 SPRING, DRIVE CLUTCH (RED)SPRING, DRIVE CLUTCH (RED)
-
130646-140 NUTNUT
-
140746-160 COVERCOVER
-
158051-212 WASHER, LOCK, SPRINGWASHER, LOCK, SPRING
-
161623-442 SCREW, MACHINESCREW, MACHINE
