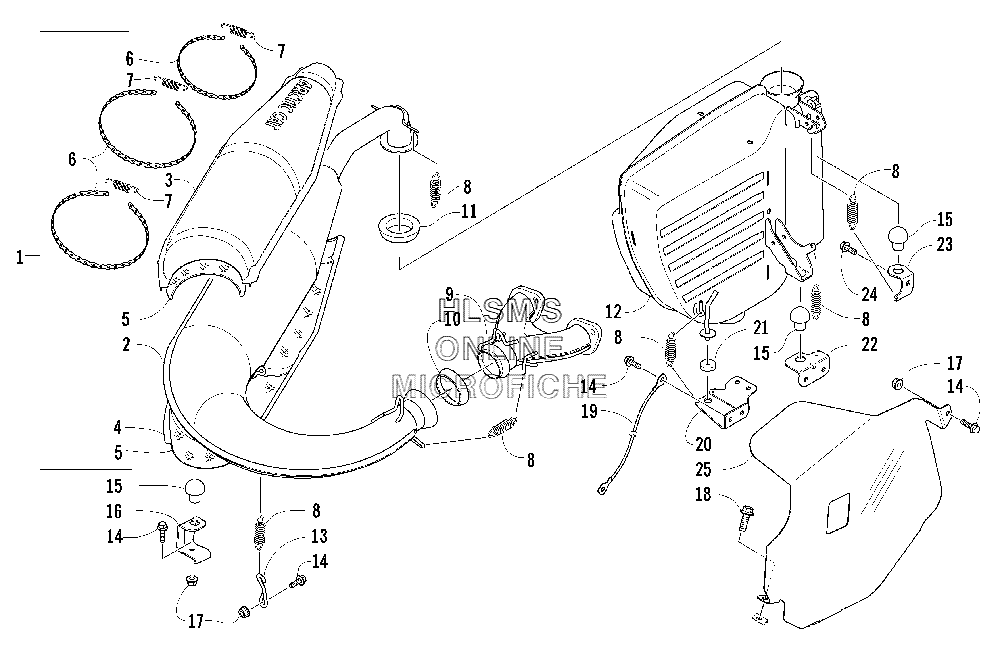

EXHAUST ASSEMBLY для Arctic Cat Bearcat 570 LONG TRACK INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
10712-990 EXPANSION CHAMBER ASSY (INC. 2, 7)EXPANSION CHAMBER ASSY (INC. 2, 7)
-
20712-732 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
31612-436 COVER (UPPER)COVER (UPPER)
-
41612-435 COVER (LOWER)COVER (LOWER)
-
51612-550 INSULATIONINSULATION
-
60624-526 TIE, PERFORATED BAND, 5 FTTIE, PERFORATED BAND, 5 FT
-
60624-541 TIE, PERFORATED BAND, 25 FTTIE, PERFORATED BAND, 25 FT
-
71612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
80612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
91712-055 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
100612-131 GASKET, EXHAUSTGASKET, EXHAUST
-
111612-066 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
120712-995 RESONATORRESONATOR
-
130712-913 BRACKET, WIRE FORMBRACKET, WIRE FORM
-
148020-040 SCREW, CAPSCREW, CAP
-
150612-111 BUMPER, RUBBERBUMPER, RUBBER
-
161612-508 BRACKET, MOUNTING, EXPANSION CHAMBERBRACKET, MOUNTING, EXPANSION CHAMBER
-
178048-366 NUT, LOCKNUT, LOCK
-
180623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190686-126 WIRE, GROUNDWIRE, GROUND
-
200712-834 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
211612-319 BUSHING, STEM, RESONATOR MOUNTINGBUSHING, STEM, RESONATOR MOUNTING
-
220712-992 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
230712-993 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
248020-134 SCREW, CAPSCREW, CAP
-
253706-183 SHIELD, HEATSHIELD, HEAT
