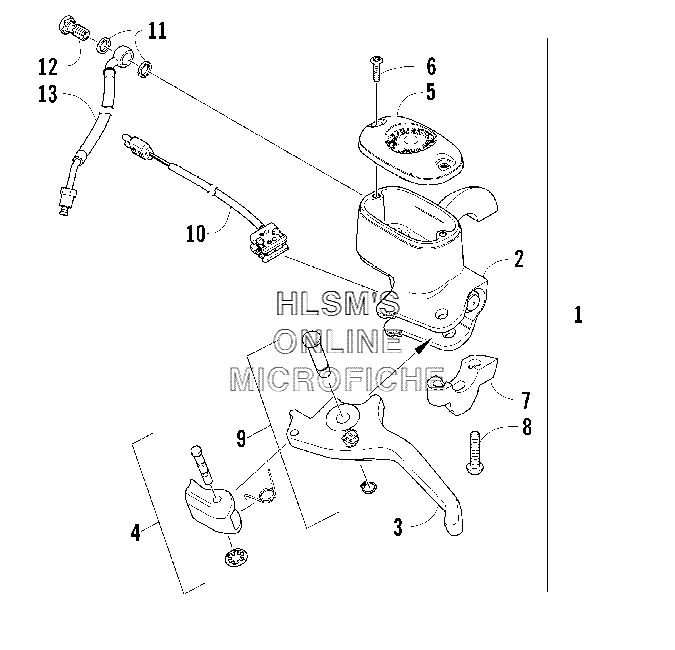

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat Bearcat WIDE TRACK INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
11602-928 BRAKE ASSY (INC. 2, 10)BRAKE ASSY (INC. 2, 10)
-
21602-927 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
31602-931 LEVER, BRAKE (INC. 4)LEVER, BRAKE (INC. 4)
-
41602-932 LOCK, BRAKE LEVER KITLOCK, BRAKE LEVER KIT
-
51602-933 COVER, RESERVOIRCOVER, RESERVOIR
-
61602-934 SCREW, RESERVOIR COVER KITSCREW, RESERVOIR COVER KIT
-
71602-935 CLAMP, BRAKECLAMP, BRAKE
-
81602-936 SCREW, BRAKE CLAMP KITSCREW, BRAKE CLAMP KIT
-
91602-937 PIN, BRAKE LEVER KITPIN, BRAKE LEVER KIT
-
101602-938 SWITCH, BRAKESWITCH, BRAKE
-
110423-178 WASHER, CRUSHWASHER, CRUSH
-
120423-413 BOLT, BANJO FITTINGBOLT, BANJO FITTING
-
131602-880 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
130638-315 FLUID, BRAKE, HIGH TEMPERATUREFLUID, BRAKE, HIGH TEMPERATURE
