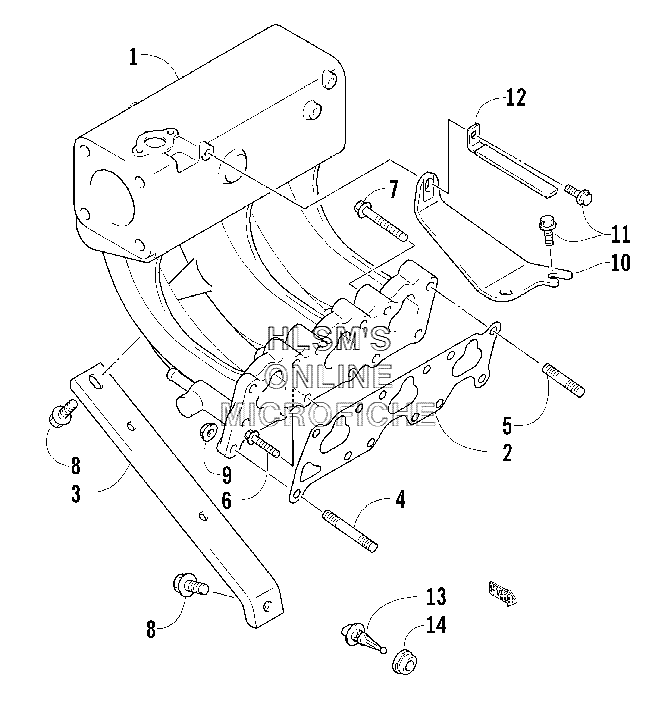

INTAKE MANIFOLD ASSEMBLY для Arctic Cat Bearcat WIDE TRACK INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
13007-030 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
23006-205 GASKETGASKET
-
33006-206 BRACKET, STIFFENERBRACKET, STIFFENER
-
43006-372 BOLT, STUDBOLT, STUD
-
53006-373 BOLT, STUDBOLT, STUD
-
63004-376 BOLTBOLT
-
73004-426 BOLTBOLT
-
83004-630 BOLTBOLT
-
93004-488 NUTNUT
-
103006-578 BRACKET, STIFFENERBRACKET, STIFFENER
-
113006-579 BOLTBOLT
-
123006-580 CLAMPCLAMP
-
133006-656 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
143006-657 GASKETGASKET
