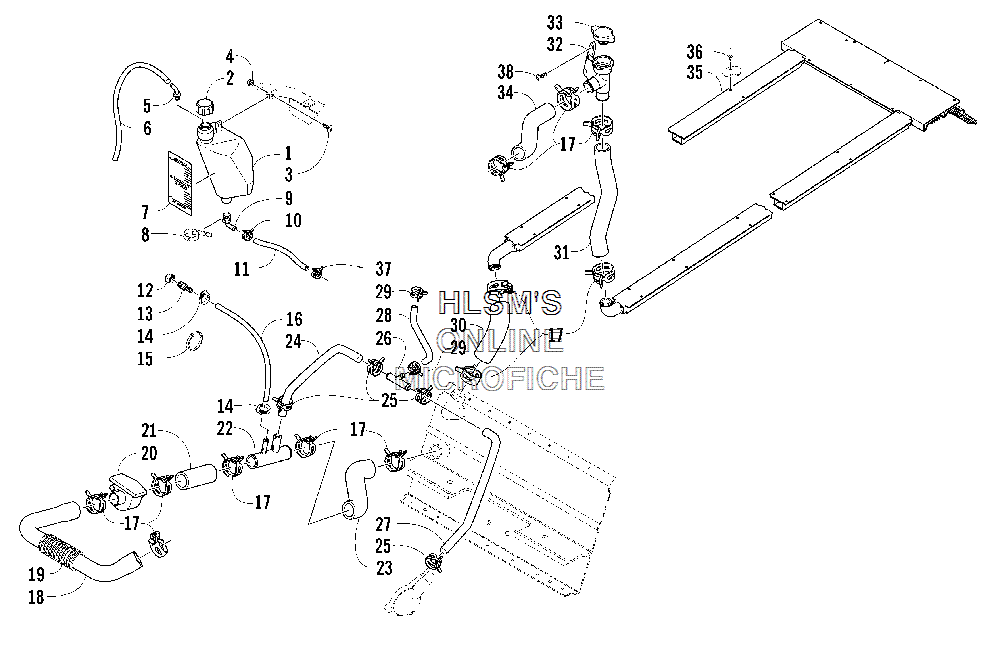

COOLING ASSEMBLY для Arctic Cat Bearcat WIDE TRACK Turbo ARTICULATING - 2006 года выпуска
-
№АртикулНазвание
-
11670-246 TANK, COOLANTTANK, COOLANT
-
20670-035 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINESCREW, MACHINE
-
48048-366 NUT, LOCKNUT, LOCK
-
50670-242 FITTING, VENTFITTING, VENT
-
60610-010 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
74611-093 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-075 FITTING, ELBOWFITTING, ELBOW
-
101623-234 CLAMP, HOSECLAMP, HOSE
-
116101-001 HOSE (100 FT)HOSE (100 FT)
-
116101-009 HOSE (50 FT)HOSE (50 FT)
-
121670-303 CAP, DRAINCAP, DRAIN
-
130623-976 ADAPTER, FITTINGADAPTER, FITTING
-
140623-373 CLAMP, HOSECLAMP, HOSE
-
150123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
160610-076 HOSE, COOLANT, DRAIN (10 FT)HOSE, COOLANT, DRAIN (10 FT)
-
170623-736 CLAMP, HOSECLAMP, HOSE
-
180610-503 HOSE, COOLANT, HEATER/ENGINEHOSE, COOLANT, HEATER/ENGINE
-
190619-619 PROTECTOR, HOSEPROTECTOR, HOSE
-
200609-182 HEATER, INLINEHEATER, INLINE
-
210610-539 HOSE, COOLANT, HEATER/T, FITTINGHOSE, COOLANT, HEATER/T, FITTING
-
222606-502 T, FITTING, DOUBLET, FITTING, DOUBLE
-
230610-501 HOSE, COOLANT, FRONT HEAT EXCHANGER/T, FITTINGHOSE, COOLANT, FRONT HEAT EXCHANGER/T, FITTING
-
240610-520 HOSE, COOLANT, Y, FITTING/T, FITTINGHOSE, COOLANT, Y, FITTING/T, FITTING
-
251623-285 CLAMP, HOSECLAMP, HOSE
-
262606-625 Y, FITTINGY, FITTING
-
270610-519 HOSE, COOLANT, THERMOSTAT/Y, FITTINGHOSE, COOLANT, THERMOSTAT/Y, FITTING
-
280610-518 HOSE, COOLANT, THROTTLE BODY/Y, FITTINGHOSE, COOLANT, THROTTLE BODY/Y, FITTING
-
291623-197 CLAMP, HOSECLAMP, HOSE
-
300610-502 HOSE, COOLANT, FRONT HEAT EXCHANGER/REAR HEAT EXCHANGERHOSE, COOLANT, FRONT HEAT EXCHANGER/REAR HEAT EXCHANGER
-
310610-651 HOSE, FILLER NECK/REAR HEAT EXCHANGERHOSE, FILLER NECK/REAR HEAT EXCHANGER
-
323606-857 NECK, FILLERNECK, FILLER
-
332606-284 CAP, FILLER NECKCAP, FILLER NECK
-
340610-653 HOSE, COOLANT, FILLER NECK/ENGINEHOSE, COOLANT, FILLER NECK/ENGINE
-
352706-932 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
368060-686 RIVETRIVET
-
371623-351 CLAMP, HOSECLAMP, HOSE
-
381623-547 SCREW, MACHINESCREW, MACHINE
