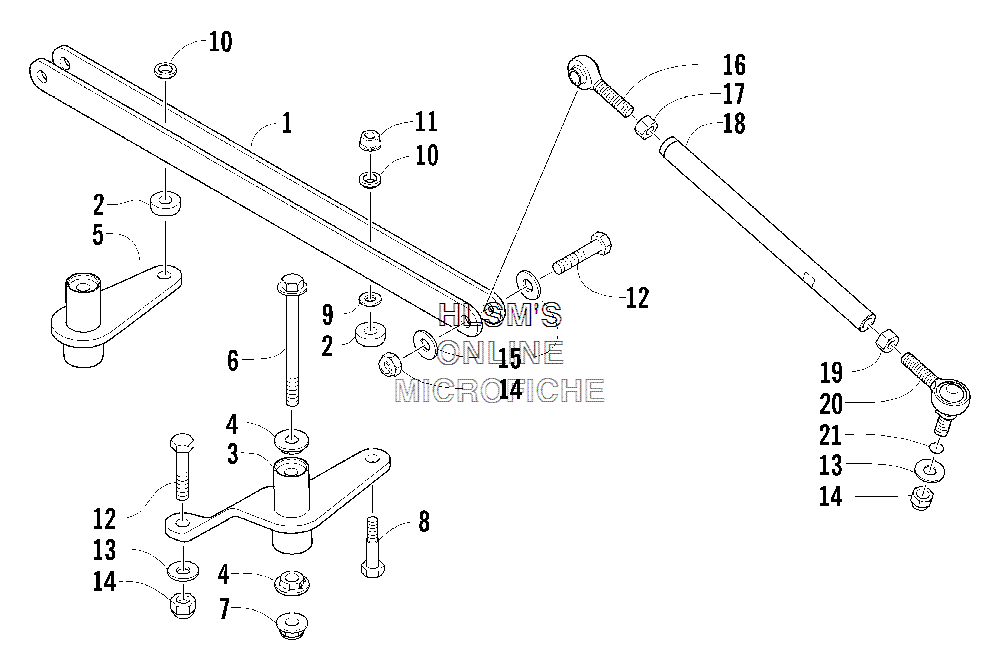

TIE ROD ASSEMBLY для Arctic Cat Bearcat WIDE TRACK Turbo ARTICULATING - 2006 года выпуска
-
№АртикулНазвание
-
10705-370 DRAG LINK (INC. 2)DRAG LINK (INC. 2)
-
20605-541 BEARINGBEARING
-
31705-080 ARM, STEERING, ASSYARM, STEERING, ASSY
-
40605-540 INSERTINSERT
-
51705-060 ARM, STEERING, IDLER, ASSYARM, STEERING, IDLER, ASSY
-
68020-234 SCREW, CAPSCREW, CAP
-
78048-486 NUT, LOCKNUT, LOCK
-
80623-920 SCREW, CAPSCREW, CAP
-
98050-272 WASHERWASHER
-
100605-522 AXLE, DRAG LINKAXLE, DRAG LINK
-
118048-426 NUT, LOCKNUT, LOCK
-
128004-226 SCREW, CAPSCREW, CAP
-
130623-044 WASHERWASHER
-
140623-025 NUT, LOCKNUT, LOCK
-
158050-277 WASHERWASHER
-
160605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
170623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
180605-312 TUBE, TIE ROD, SPINDLETUBE, TIE ROD, SPINDLE
-
190123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
200605-511 BALL JOINT, STEERING (LEFT)BALL JOINT, STEERING (LEFT)
-
210605-014 O-RINGO-RING
