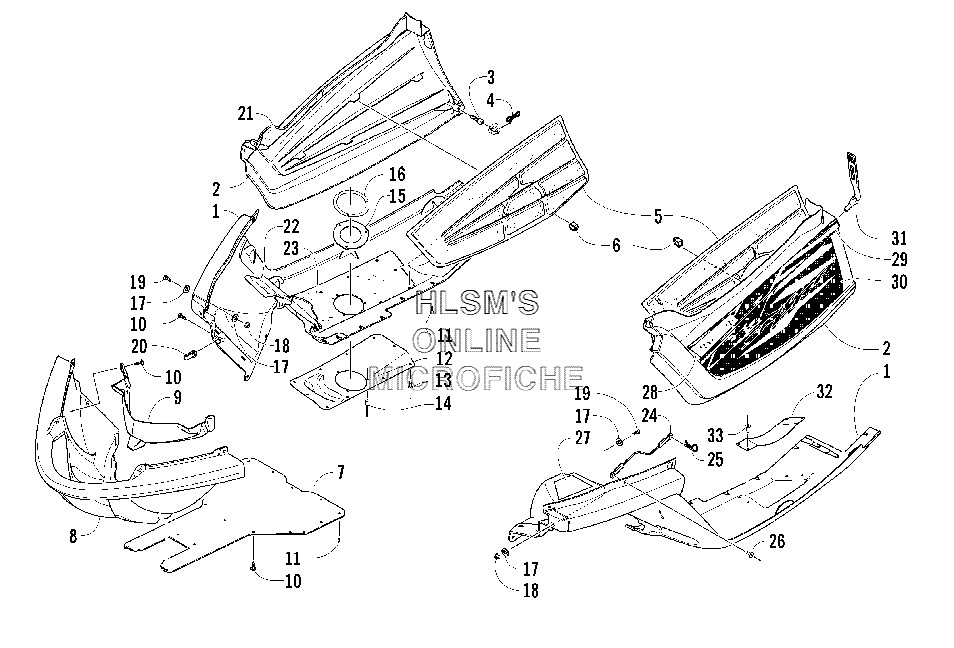

BELLY PAN ASSEMBLY для Arctic Cat CROSSFIRE 700 EFI SNO PRO (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
13706-218 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
13706-213 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
24606-260 PANEL, ACCESS (RIGHT)PANEL, ACCESS (RIGHT)
-
24606-261 PANEL, ACCESS (LEFT)PANEL, ACCESS (LEFT)
-
31623-531 SCREW, RETAINING , ACCESS PANELSCREW, RETAINING , ACCESS PANEL
-
41623-546 PIN, RETAININGPIN, RETAINING
-
50617-502 FOAM, SIDE PANEL (RIGHT)FOAM, SIDE PANEL (RIGHT)
-
50617-503 FOAM, SIDE PANEL (LEFT)FOAM, SIDE PANEL (LEFT)
-
60123-394 CLIP, RETAININGCLIP, RETAINING
-
73606-867 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
84606-043 BUMPER (FRONT)BUMPER (FRONT)
-
92606-911 SCREEN, BELLY PAN (CENTER)SCREEN, BELLY PAN (CENTER)
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
121712-189 SHIELD, HEATSHIELD, HEAT
-
138060-510 RIVET, BLINDRIVET, BLIND
-
140623-778 RIVETRIVET
-
151612-893 SEAL, EXHAUST , OUTLETSEAL, EXHAUST , OUTLET
-
161712-174 PLATE, EXHAUST , OUTLETPLATE, EXHAUST , OUTLET
-
178050-217 WASHERWASHER
-
188047-366 NUT, LOCKNUT, LOCK
-
198017-581 SCREW, MACHINESCREW, MACHINE
-
201623-030 NUT, SPEEDNUT, SPEED
-
214606-157 FOIL, PROTECTIVE , ACCESS PANELFOIL, PROTECTIVE , ACCESS PANEL
-
224606-266 FOIL, PROTECTIVE (UPPER)FOIL, PROTECTIVE (UPPER)
-
234606-267 FOIL, PROTECTIVE (LOWER)FOIL, PROTECTIVE (LOWER)
-
240607-447 CABLECABLE
-
250605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
268061-426 RIVETRIVET
-
277611-156 DECAL, CLUTCHINGDECAL, CLUTCHING
-
287611-160 DECAL, REFLECTOR (AMBER) (RIGHT)DECAL, REFLECTOR (AMBER) (RIGHT)
-
287611-161 DECAL, REFLECTOR (AMBER) (LEFT)DECAL, REFLECTOR (AMBER) (LEFT)
-
297611-464 DECAL, ACCESS PANEL (UPPER) (RIGHT)DECAL, ACCESS PANEL (UPPER) (RIGHT)
-
297611-465 DECAL, ACCESS PANEL (UPPER) (LEFT)DECAL, ACCESS PANEL (UPPER) (LEFT)
-
307611-466 DECAL, ACCESS PANEL (LOWER) (RIGHT)DECAL, ACCESS PANEL (LOWER) (RIGHT)
-
307611-467 DECAL, ACCESS PANEL (LOWER) (LEFT)DECAL, ACCESS PANEL (LOWER) (LEFT)
-
312606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
324606-381 PROTECTOR, BELLY PANPROTECTOR, BELLY PAN
-
338061-506 RIVETRIVET
