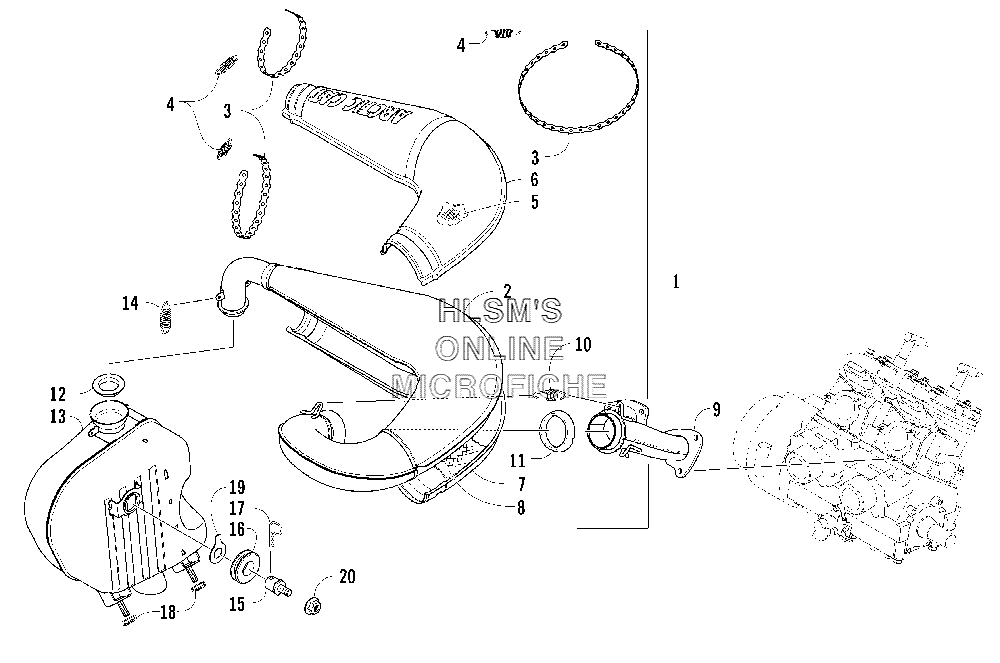

EXHAUST ASSEMBLY для Arctic Cat CROSSFIRE 700 EFI SNO PRO (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
11712-237 CHAMBER, EXPANSION , ASSY (INC. 2, 8)CHAMBER, EXPANSION , ASSY (INC. 2, 8)
-
21712-236 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
30624-526 TIE, PERFORATED BAND , 5 FTTIE, PERFORATED BAND , 5 FT
-
30624-541 TIE, PERFORATED BAND , 25 FTTIE, PERFORATED BAND , 25 FT
-
41612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
51612-590 PACKING, EXPANSION CHAMBER (UPPER)PACKING, EXPANSION CHAMBER (UPPER)
-
61612-574 COVER, EXPANSION CHAMBER (UPPER)COVER, EXPANSION CHAMBER (UPPER)
-
71612-804 COVER, EXPANSION CHAMBER (LOWER)COVER, EXPANSION CHAMBER (LOWER)
-
81612-805 PACKING, EXPANSION CHAMBER (LOWER)PACKING, EXPANSION CHAMBER (LOWER)
-
91712-104 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
100612-820 SPRING, EXHAUSTSPRING, EXHAUST
-
111612-014 GASKET, EXHAUSTGASKET, EXHAUST
-
121612-323 GASKET, EXHAUST , TAILPIPEGASKET, EXHAUST , TAILPIPE
-
131712-175 RESONATORRESONATOR
-
140612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
151623-374 PIN, MOUNTING , RESONATORPIN, MOUNTING , RESONATOR
-
161623-375 GROMMETGROMMET
-
171623-379 CLIP, HAIRPINCLIP, HAIRPIN
-
181612-873 GROMMETGROMMET
-
191612-927 WASHER, TABWASHER, TAB
-
208047-486 NUT, LOCKNUT, LOCK
