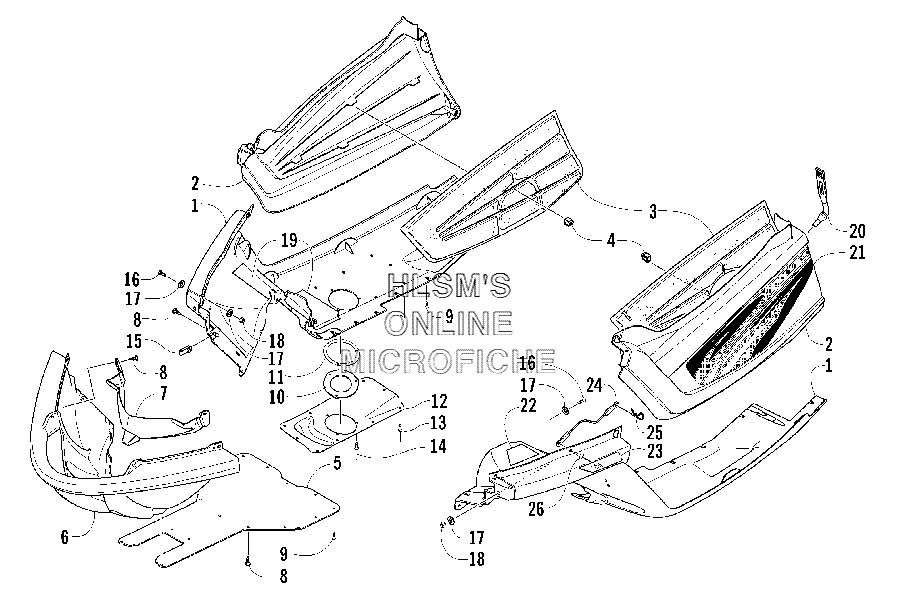

BELLY PAN ASSEMBLY для Arctic Cat CrossFire 700 EFI (WEST YELLOWSTONE BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
13706-045 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
12706-815 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
23606-426 PANEL, ACCESS (RIGHT)PANEL, ACCESS (RIGHT)
-
23606-427 PANEL, ACCESS (LEFT)PANEL, ACCESS (LEFT)
-
30617-502 FOAM, SIDE PANEL (RIGHT)FOAM, SIDE PANEL (RIGHT)
-
30617-503 FOAM, SIDE PANEL (LEFT)FOAM, SIDE PANEL (LEFT)
-
40123-394 CLIP, RETAININGCLIP, RETAINING
-
53606-867 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
64606-040 BUMPER (FRONT)BUMPER (FRONT)
-
72606-911 SCREEN, BELLY PAN (CENTER)SCREEN, BELLY PAN (CENTER)
-
80623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
101612-893 SEAL, EXHAUST , OUTLETSEAL, EXHAUST , OUTLET
-
111712-174 PLATE, EXHAUST , OUTLETPLATE, EXHAUST , OUTLET
-
121712-189 SHIELD, HEATSHIELD, HEAT
-
138060-510 RIVET, BLINDRIVET, BLIND
-
140623-778 RIVETRIVET
-
151623-030 NUT, SPEEDNUT, SPEED
-
168017-581 SCREW, MACHINESCREW, MACHINE
-
178050-217 WASHERWASHER
-
188047-366 NUT, LOCKNUT, LOCK
-
190619-206 TAPE, FOILTAPE, FOIL
-
202606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
217611-044 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
217611-045 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
227611-064 DECAL, CLUTCHINGDECAL, CLUTCHING
-
236611-514 DECAL, REFLECTOR (AMBER) (RIGHT)DECAL, REFLECTOR (AMBER) (RIGHT)
-
236611-515 DECAL, REFLECTOR (AMBER) (LEFT)DECAL, REFLECTOR (AMBER) (LEFT)
-
240607-447 CABLECABLE
-
250605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
268061-426 RIVETRIVET
