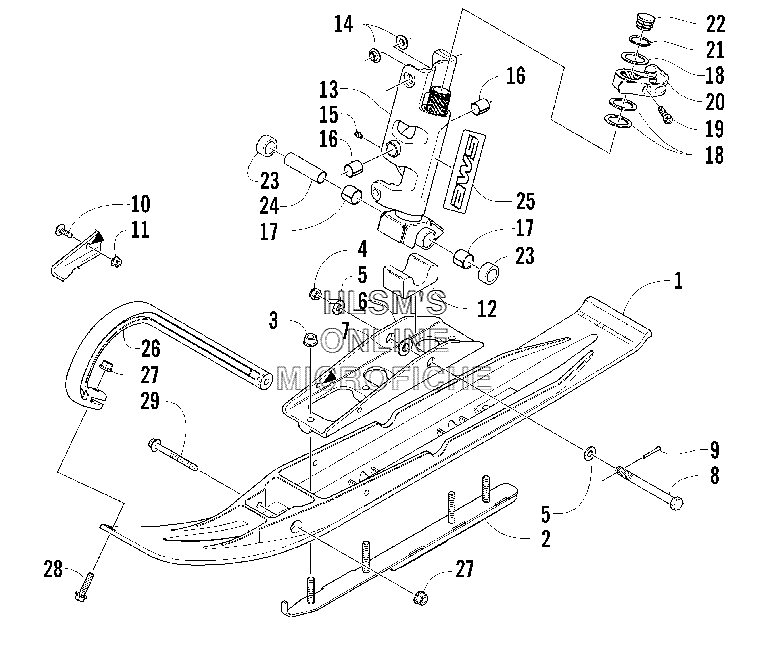

SKI AND SPINDLE ASSEMBLY для Arctic Cat CrossFire 700 EFI (WEST YELLOWSTONE BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10703-958 SKI, PLASTICSKI, PLASTIC
-
20703-871 WEARBARWEARBAR
-
31603-968 SPACERSPACER
-
48047-486 NUT, LOCKNUT, LOCK
-
50123-296 NUT, LOCKNUT, LOCK
-
60623-728 WASHERWASHER
-
71703-501 SADDLE, SKI (INC. 8)SADDLE, SKI (INC. 8)
-
80603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
90623-552 SCREW, CAPSCREW, CAP
-
100123-458 PIN, COTTERPIN, COTTER
-
118017-581 SCREW, MACHINESCREW, MACHINE
-
128048-366 NUT, LOCKNUT, LOCK
-
132603-553 DAMPER, SKIDAMPER, SKI
-
141703-630 SPINDLE, STEERING (RIGHT) (INC. 15, 22)SPINDLE, STEERING (RIGHT) (INC. 15, 22)
-
141703-631 SPINDLE, STEERING (LEFT) (INC. 15, 22)SPINDLE, STEERING (LEFT) (INC. 15, 22)
-
150603-647 INSERT, SPINDLEINSERT, SPINDLE
-
161623-010 FITTING, GREASEFITTING, GREASE
-
170603-083 BEARINGBEARING
-
180603-158 BEARINGBEARING
-
191603-203 WASHER, THRUSTWASHER, THRUST
-
208005-584 SCREW, CAPSCREW, CAP
-
211703-413 ARM, STEERINGARM, STEERING
-
220623-796 RING, RETAININGRING, RETAINING
-
230623-831 CAP, SPINDLECAP, SPINDLE
-
241603-908 SPACERSPACER
-
250603-034 AXLE, SPINDLEAXLE, SPINDLE
-
267611-060 DECAL, "AWS" , SPINDLEDECAL, "AWS" , SPINDLE
-
270603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
288048-426 NUT, LOCKNUT, LOCK
-
298020-135 SCREW, CAPSCREW, CAP
-
308020-143 SCREW, CAPSCREW, CAP
