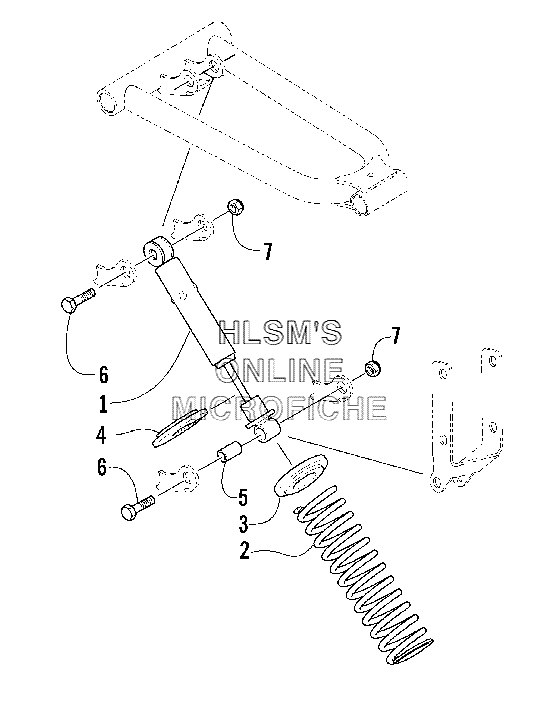

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat F 120 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
12603-517 SHOCK, SKISHOCK, SKI
-
21703-851 SPRING, SHOCKSPRING, SHOCK
-
30403-027 RETAINER, SPRING (LOWER)RETAINER, SPRING (LOWER)
-
42603-520 RETAINER, SPRING (UPPER)RETAINER, SPRING (UPPER)
-
51603-531 AXLE, SHOCK, FRONT ARMAXLE, SHOCK, FRONT ARM
-
68002-225 SCREW, CAPSCREW, CAP
-
78041-486 NUT, LOCKNUT, LOCK
