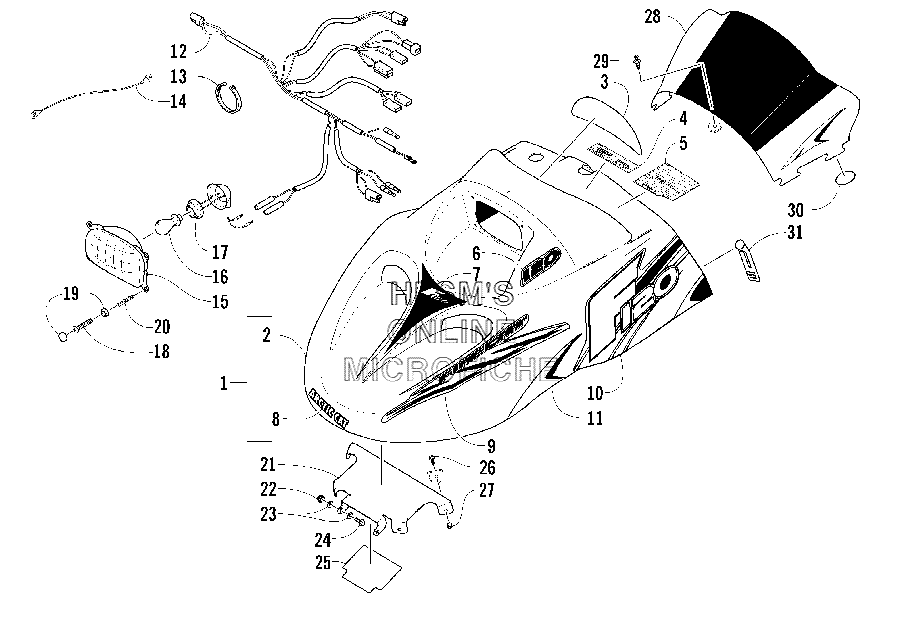

HOOD- HEADLIGHT- AND WINDSHIELD ASSEMBLY для Arctic Cat F 120 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
11718-829 HOOD W/DECALS (INC. 2, 11)HOOD W/DECALS (INC. 2, 11)
-
21718-828 HOOD W/O DECALS (INC. 3, 5)HOOD W/O DECALS (INC. 3, 5)
-
37611-073 DECAL, INSTRUMENT PANELDECAL, INSTRUMENT PANEL
-
43611-755 DECAL, CAUTION, THROTTLEDECAL, CAUTION, THROTTLE
-
53611-678 DECAL, CAUTION, HOODDECAL, CAUTION, HOOD
-
66611-844 DECAL, HOOD, WINDSHIELDDECAL, HOOD, WINDSHIELD
-
76611-855 DECAL, CRESTDECAL, CREST
-
87611-072 DECAL, "ARCTIC CAT", F 120DECAL, "ARCTIC CAT", F 120
-
96611-846 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
96611-847 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
106611-848 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
106611-849 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
117611-074 DECAL, HOOD, FORWARD (RIGHT)DECAL, HOOD, FORWARD (RIGHT)
-
117611-075 DECAL, HOOD, FORWARD (LEFT)DECAL, HOOD, FORWARD (LEFT)
-
120686-684 HARNESS, WIRING, MAINHARNESS, WIRING, MAIN
-
130123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
142606-247 CABLE, HOODCABLE, HOOD
-
150609-003 HEADLIGHT ASSEMBLY (INC. 16, 17)HEADLIGHT ASSEMBLY (INC. 16, 17)
-
160609-004 BULB, HEADLIGHTBULB, HEADLIGHT
-
180123-616 SCREW, ADJUSTMENTSCREW, ADJUSTMENT
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200123-614 SPRING, ADJUSTMENT SCREWSPRING, ADJUSTMENT SCREW
-
212706-140 BRACKET, MOUNTING, HOOD (UPPER)BRACKET, MOUNTING, HOOD (UPPER)
-
228047-366 NUT, LOCKNUT, LOCK
-
231623-011 WASHERWASHER
-
248020-039 SCREW, CAPSCREW, CAP
-
257611-200 DECAL, JET CHARTDECAL, JET CHART
-
260623-902 SCREW, HEX WASHER HEADSCREW, HEX WASHER HEAD
-
271623-023 NUT, LOCKNUT, LOCK
-
284606-014 WINDSHIELDWINDSHIELD
-
290623-243 CLIP, RETAININGCLIP, RETAINING
-
300616-032 O RING, WINDSHIELDO RING, WINDSHIELD
-
311606-930 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
