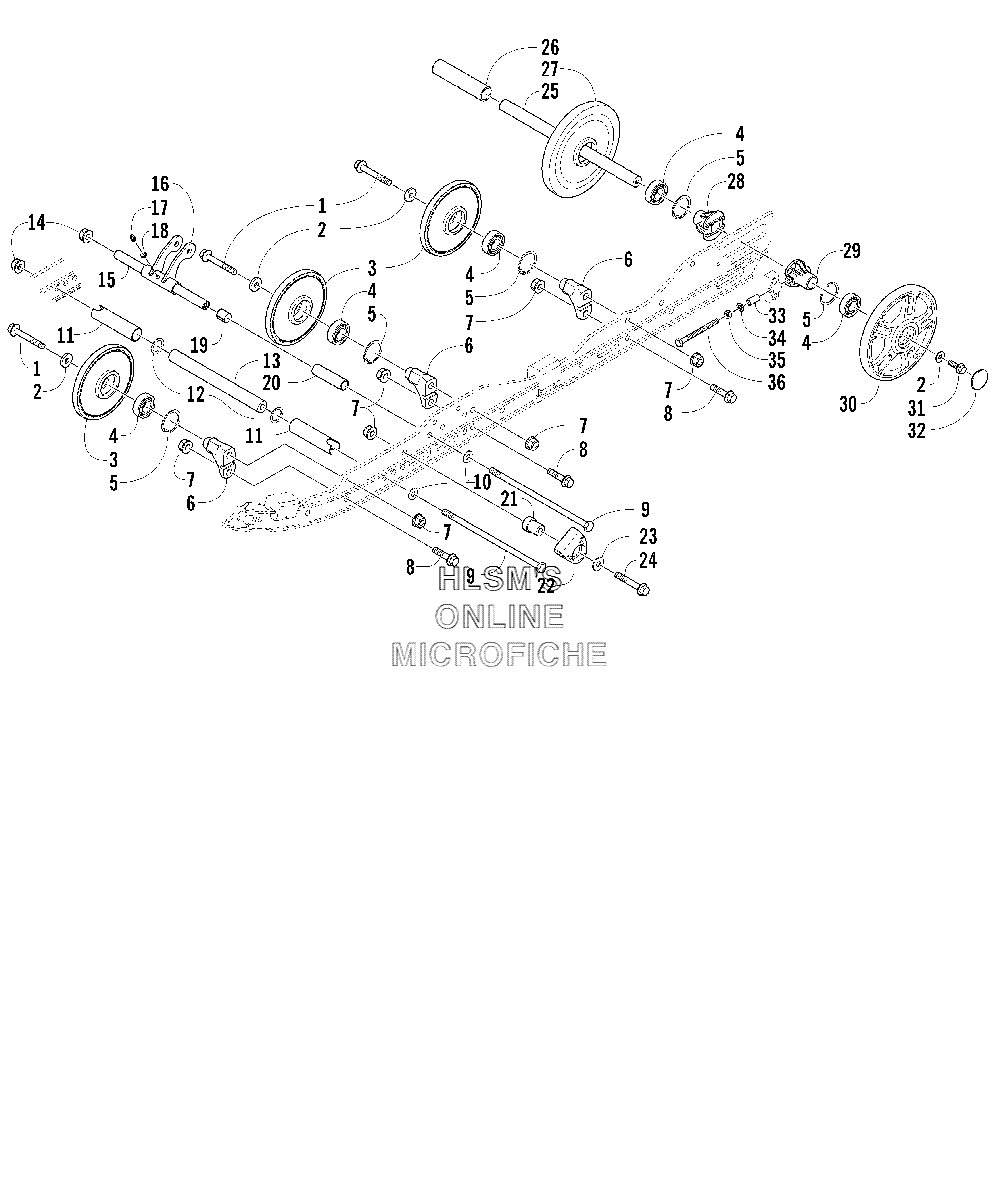

IDLER WHEEL ASSEMBLY для Arctic Cat F5 Firecat Sno Pro (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
33604-039 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
43604-033 BEARING, WHEELBEARING, WHEEL
-
50623-946 RING, RETAININGRING, RETAINING
-
62604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
78047-486 NUT, LOCKNUT, LOCK
-
88020-224 SCREW, CAPSCREW, CAP
-
91623-037 SCREW, CAPSCREW, CAP
-
108050-272 WASHERWASHER
-
111604-793 SPACERSPACER
-
120623-912 WASHERWASHER
-
131604-792 AXLE, STEELAXLE, STEEL
-
148047-490 NUT, LOCKNUT, LOCK
-
151604-209 AXLE, STEELAXLE, STEEL
-
160704-994 PIVOT, SHOCK (INC. 17, 19)PIVOT, SHOCK (INC. 17, 19)
-
171623-010 FITTING, GREASEFITTING, GREASE
-
181623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
190603-083 BEARINGBEARING
-
202604-109 SPACERSPACER
-
212604-378 BLOCK, SLIDEBLOCK, SLIDE
-
222604-515 SLIDE, SPRINGSLIDE, SPRING
-
238050-282 WASHERWASHER
-
248020-229 SCREW, CAPSCREW, CAP
-
252604-874 AXLE (REAR)AXLE (REAR)
-
261604-810 SPACERSPACER
-
273604-060 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
282604-881 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
291704-490 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
303604-066 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
311623-249 SCREW, CAPSCREW, CAP
-
321604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
-
332604-890 SPACERSPACER
-
348051-277 WASHER, LOCKWASHER, LOCK
-
358042-486 NUTNUT
-
361623-354 SCREW, CAPSCREW, CAP
