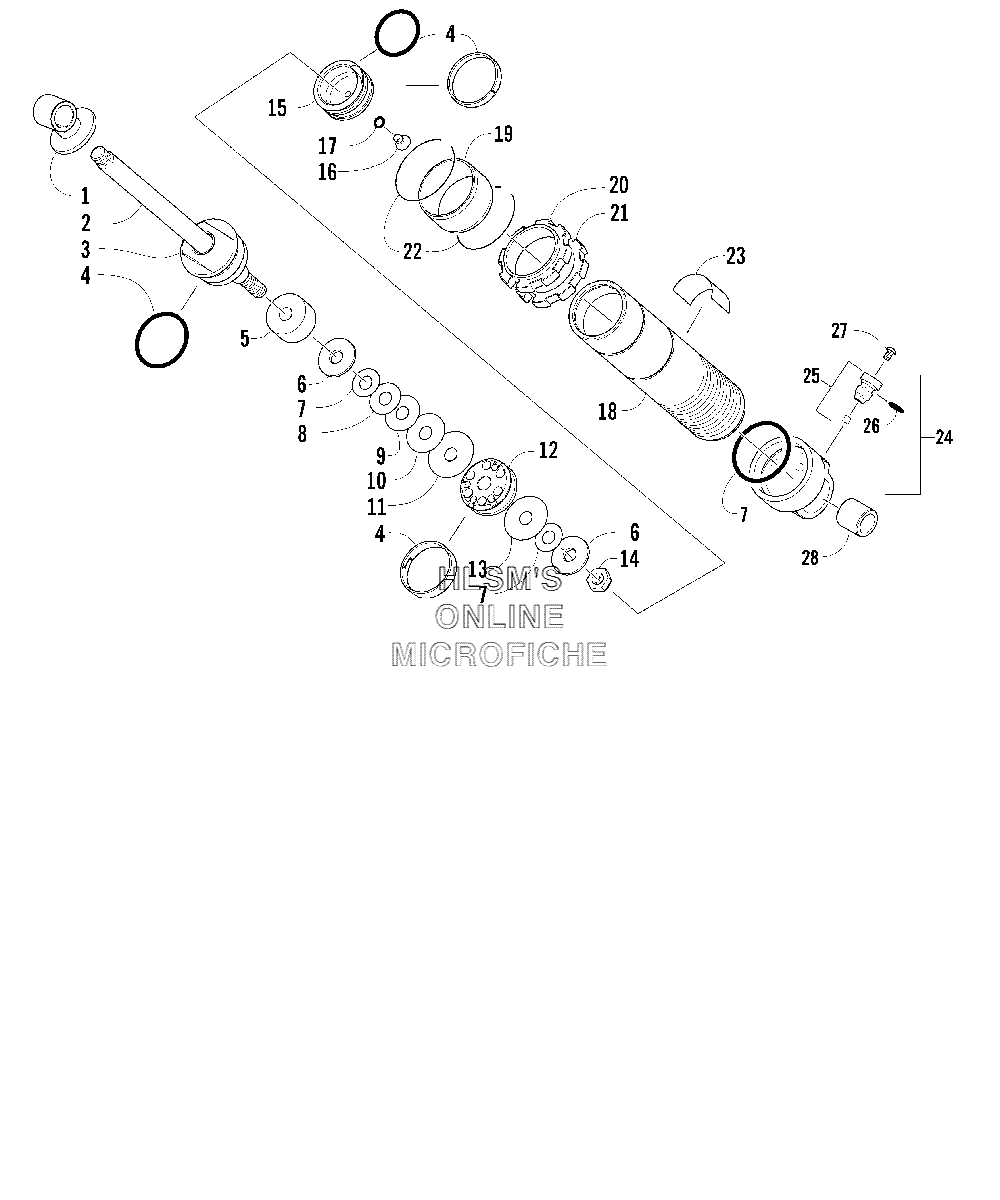

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat F5 Firecat Sno Pro (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
-1704-453 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-872 ROD, SHOCKROD, SHOCK
-
32604-812 BEARING, ASSYBEARING, ASSY
-
42604-815 SEAL/REBUILD KITSEAL/REBUILD KIT
-
52603-194 SPACERSPACER
-
60603-540 WASHER, TOP OUTWASHER, TOP OUT
-
70603-334 VALVE, 0.800 X 0.008 IN.VALVE, 0.800 X 0.008 IN.
-
80603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
90603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
100603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
110603-891 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
122603-309 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
130603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
140603-301 NUT, LOCKNUT, LOCK
-
152604-816 PISTON, FLOATING, ASSYPISTON, FLOATING, ASSY
-
161604-316 SCREW, RELIEF (INC. 17)SCREW, RELIEF (INC. 17)
-
171604-425 O-RINGO-RING
-
182604-873 BODY, SHOCKBODY, SHOCK
-
192603-246 SLEEVE, WEARSLEEVE, WEAR
-
202604-840 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
212604-841 NUT, LOCKING, ADJUSTERNUT, LOCKING, ADJUSTER
-
222603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
232603-475 DECAL, SHOCKDECAL, SHOCK
-
242604-817 END CAP, SHOCK (INC. 25, 26)END CAP, SHOCK (INC. 25, 26)
-
250703-341 VALVE, PRESSURE (INC. 26)VALVE, PRESSURE (INC. 26)
-
261604-318 O-RING, VALVEO-RING, VALVE
-
270624-097 SCREW, VALVESCREW, VALVE
-
282604-415 BUSHING, SHOCKBUSHING, SHOCK
-
282639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
