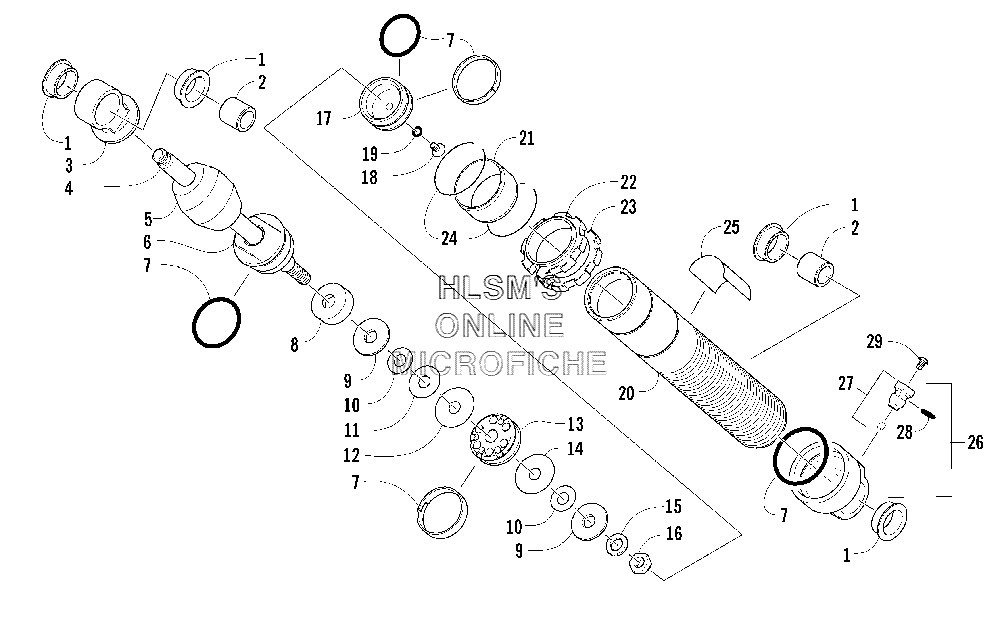

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat F7 Firecat EFI (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
-1703-940 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10603-955 BUSHING, SHOCKBUSHING, SHOCK
-
21603-209 SLEEVE, EYELETSLEEVE, EYELET
-
30603-910 EYELET, SHOCKEYELET, SHOCK
-
42603-192 ROD, SHOCKROD, SHOCK
-
52603-284 BUMPER, SHOCKBUMPER, SHOCK
-
62604-413 BEARING, ASSYBEARING, ASSY
-
72604-815 SEAL/REBUILD KITSEAL/REBUILD KIT
-
82603-194 SPACERSPACER
-
90603-540 WASHER, TOP OUTWASHER, TOP OUT
-
100603-332 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
110603-342 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
120603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
132603-605 PISTON, 0.120 IN., ORIFICEPISTON, 0.120 IN., ORIFICE
-
140603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
150603-389 WASHER, BACKUPWASHER, BACKUP
-
160603-301 NUT, LOCKNUT, LOCK
-
172604-816 PISTON, FLOATINGPISTON, FLOATING
-
181604-316 SCREW, RELIEF (INC. 19)SCREW, RELIEF (INC. 19)
-
191604-425 O-RINGO-RING
-
202603-222 BODY, SHOCKBODY, SHOCK
-
212603-246 SLEEVE, PROTECTORSLEEVE, PROTECTOR
-
222604-840 NUT, ADJUSTERNUT, ADJUSTER
-
232604-841 NUT, LOCKING, ADJUSTERNUT, LOCKING, ADJUSTER
-
242603-245 RETAINER, SLEEVERETAINER, SLEEVE
-
252604-897 DECAL, SHOCKDECAL, SHOCK
-
262604-817 END CAP, SHOCK (INC. 27, 28)END CAP, SHOCK (INC. 27, 28)
-
270703-341 VALVE, PRESSURE (INC. 28)VALVE, PRESSURE (INC. 28)
-
281604-318 O-RING, VALVEO-RING, VALVE
-
290624-097 SCREW, VALVESCREW, VALVE
-
292639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
