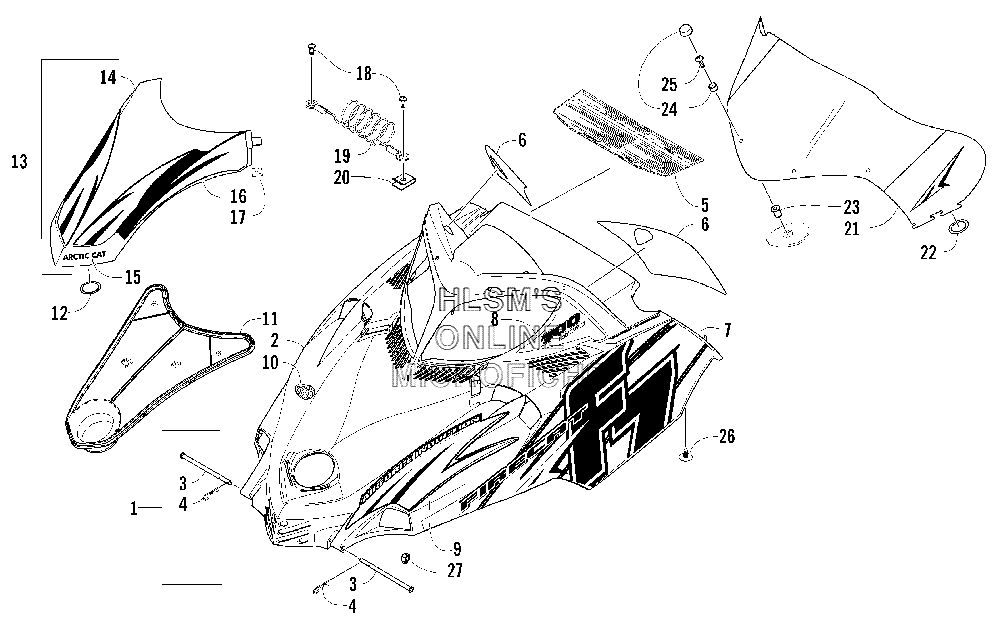

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat F7 Firecat EFI (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
11718-834 HOOD W/DECALS (INC. 2, 9)HOOD W/DECALS (INC. 2, 9)
-
21718-666 HOOD W/O DECALS (INC. 3, 5)HOOD W/O DECALS (INC. 3, 5)
-
31623-026 PIN, CLEVISPIN, CLEVIS
-
40623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
54611-496 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
66611-862 DECAL, CONSOLE (RIGHT) (GREEN)DECAL, CONSOLE (RIGHT) (GREEN)
-
66611-863 DECAL, CONSOLE (LEFT) (GREEN)DECAL, CONSOLE (LEFT) (GREEN)
-
76611-868 DECAL, HOOD (LOWER/RIGHT) (GREEN)DECAL, HOOD (LOWER/RIGHT) (GREEN)
-
76611-869 DECAL, HOOD (LOWER/LEFT) (GREEN)DECAL, HOOD (LOWER/LEFT) (GREEN)
-
86611-876 DECAL, HOOD (RIGHT) (LIGHT GREEN)DECAL, HOOD (RIGHT) (LIGHT GREEN)
-
86611-877 DECAL, HOOD (LEFT) (LIGHT GREEN)DECAL, HOOD (LEFT) (LIGHT GREEN)
-
96611-878 DECAL, HOOD (UPPER/RIGHT) (GREEN)DECAL, HOOD (UPPER/RIGHT) (GREEN)
-
96611-879 DECAL, HOOD (UPPER/LEFT) (GREEN)DECAL, HOOD (UPPER/LEFT) (GREEN)
-
100617-466 FOAM, HOODFOAM, HOOD
-
113606-150 SCREEN, HOODSCREEN, HOOD
-
122606-801 O-RINGO-RING
-
131718-843 COVER, HOOD W/DECALS (INC. 14, 17)COVER, HOOD W/DECALS (INC. 14, 17)
-
142706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
153611-679 DECAL, HOOD, "ARCTIC CAT"DECAL, HOOD, "ARCTIC CAT"
-
166611-860 DECAL, COVER (RIGHT) (GREEN)DECAL, COVER (RIGHT) (GREEN)
-
166611-861 DECAL, COVER (LEFT) (GREEN)DECAL, COVER (LEFT) (GREEN)
-
172606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
180623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
192606-726 CABLE, HOODCABLE, HOOD
-
201623-052 U, NUTU, NUT
-
214606-024 WINDSHIELD (BLACK W/ GREEN GRAPHIC)WINDSHIELD (BLACK W/ GREEN GRAPHIC)
-
220616-032 O-RINGO-RING
-
230623-845 NUT, EXPANSIONNUT, EXPANSION
-
240124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
250623-902 SCREW, MACHINESCREW, MACHINE
-
260623-544 PLUGPLUG
-
270123-394 CLIP, RETAININGCLIP, RETAINING
