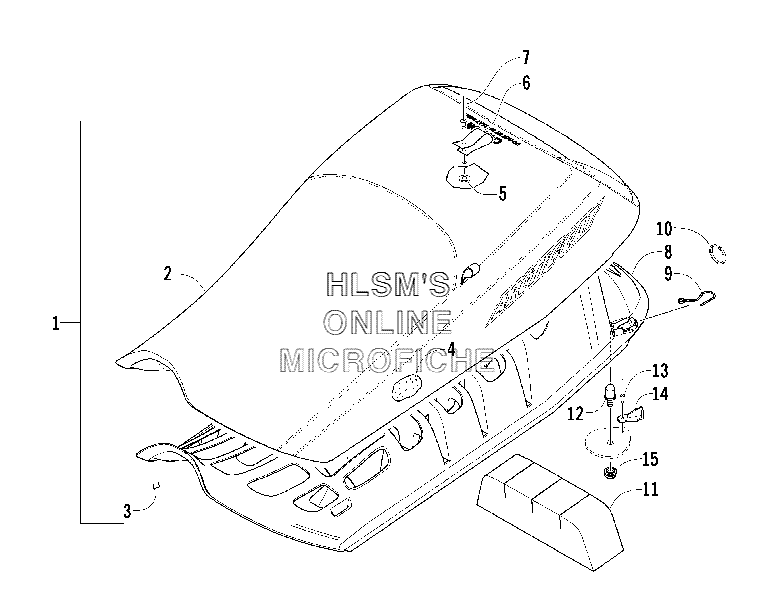

SEAT ASSEMBLY для Arctic Cat M6 EFI 141'' (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
17998-717 COMPLETE SEAT ASSY (INC. 2, 11)COMPLETE SEAT ASSY (INC. 2, 11)
-
23706-097 COVER, SEATCOVER, SEAT
-
30624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
42706-647 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
58050-127 WASHERWASHER
-
63606-813 STRAP, HOLD, DOWN, SEAT PADSTRAP, HOLD, DOWN, SEAT PAD
-
78061-508 RIVETRIVET
-
84606-128 SEAT, BASESEAT, BASE
-
91623-393 CLIP, RETAINING, SEAT, BASECLIP, RETAINING, SEAT, BASE
-
100123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
110617-512 FOAM, COMPARTMENT, SEATFOAM, COMPARTMENT, SEAT
-
121623-458 STUD, LATCH, SEAT, BASESTUD, LATCH, SEAT, BASE
-
138061-628 RIVETRIVET
-
144606-322 COVER, LATCH, SEAT (RIGHT)COVER, LATCH, SEAT (RIGHT)
-
158047-426 NUT, LOCKNUT, LOCK
