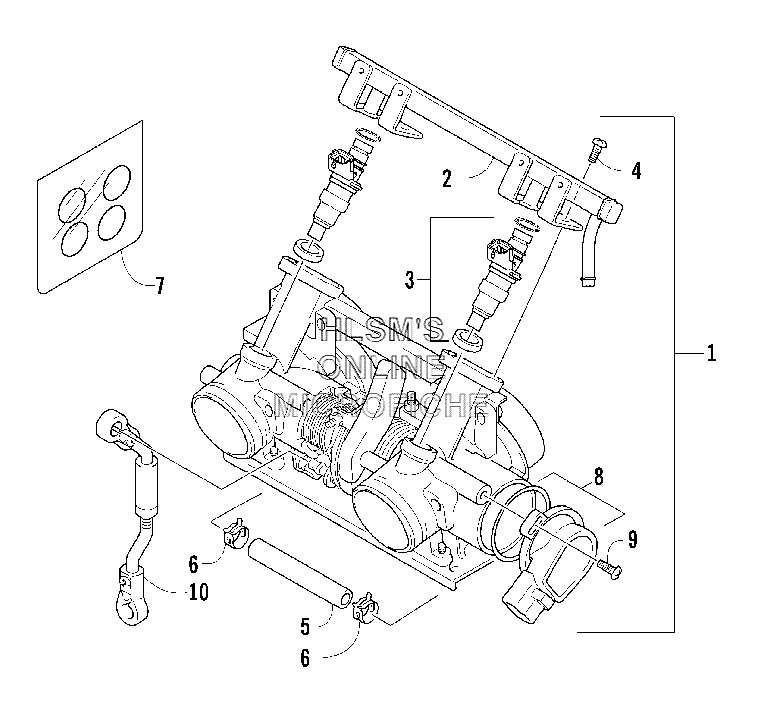

THROTTLE BODY ASSEMBLY для Arctic Cat M6 EFI 141'' (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
13006-720 BODY, THROTTLE, ASSY (CIRCLE)BODY, THROTTLE, ASSY (CIRCLE)
-
13006-721 BODY, THROTTLE, ASSY (SQUARE)BODY, THROTTLE, ASSY (SQUARE)
-
13006-722 BODY, THROTTLE, ASSY (TRIANGLE)BODY, THROTTLE, ASSY (TRIANGLE)
-
23006-517 PIPE, DELIVERYPIPE, DELIVERY
-
33006-059 INJECTOR, FUEL, ASSY (CIRCLE)INJECTOR, FUEL, ASSY (CIRCLE)
-
33006-060 INJECTOR, FUEL, ASSY (SQUARE)INJECTOR, FUEL, ASSY (SQUARE)
-
33006-061 INJECTOR, FUEL, ASSY (TRIANGLE)INJECTOR, FUEL, ASSY (TRIANGLE)
-
43423-166 SCREWSCREW
-
53006-723 HOSEHOSE
-
63004-193 CLAMP, HOSECLAMP, HOSE
-
73005-692 O-RING SET (INC. ALL THROTTLE BODY O-RINGS)O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
-
83006-939 SENSOR, THROTTLE, ASSYSENSOR, THROTTLE, ASSY
-
93007-026 SCREWSCREW
-
103006-514 ROD, CONTROL, OIL PUMPROD, CONTROL, OIL PUMP
