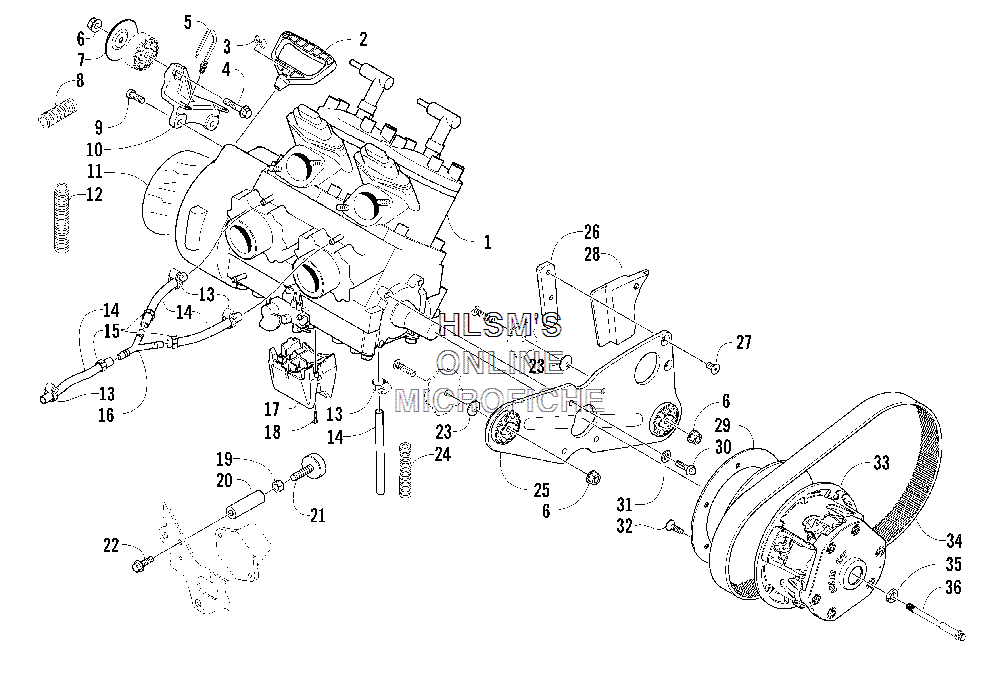

ENGINE AND RELATED PARTS для Arctic Cat M7 EFI 153'' (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10662-441 ENGINE, AD70L4 W/O EFI COMPONENTS AND W/90° FITTINGENGINE, AD70L4 W/O EFI COMPONENTS AND W/90° FITTING
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48020-136 SCREW, CAPSCREW, CAP
-
50623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
68047-426 NUT, LOCKNUT, LOCK
-
74606-317 SHIELD, HEAT, ENGINE MOUNTSHIELD, HEAT, ENGINE MOUNT
-
80619-619 CONDUIT, FLEXIBLE, 4 IN.CONDUIT, FLEXIBLE, 4 IN.
-
98413-830 SCREW, CAPSCREW, CAP
-
100708-461 BRACKET, ENGINE MOUNTING (RIGHT)BRACKET, ENGINE MOUNTING (RIGHT)
-
111670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
120619-994 CONDUIT, FLEXIBLE (3/4 IN. ID) 6 IN.CONDUIT, FLEXIBLE (3/4 IN. ID) 6 IN.
-
130623-373 CLAMP, HOSECLAMP, HOSE
-
140610-076 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
150610-581 CLAMP, HOSECLAMP, HOSE
-
161670-596 Y, FITTINGY, FITTING
-
170608-460 BUMPERBUMPER
-
181623-022 SCREW, MACHINESCREW, MACHINE
-
198042-486 NUTNUT
-
200608-394 TUBE, TORQUE BUMPERTUBE, TORQUE BUMPER
-
210608-396 BUMPER, TORQUEBUMPER, TORQUE
-
228020-220 SCREW, CAPSCREW, CAP
-
230623-987 WASHERWASHER
-
240619-776 CONDUIT, FLEXIBLE (5 FT)CONDUIT, FLEXIBLE (5 FT)
-
250708-469 BRACKET, ENGINE MOUNTING (LEFT) (INC. 26, 27)BRACKET, ENGINE MOUNTING (LEFT) (INC. 26, 27)
-
260608-430 SPACER, TORQUE BUMPERSPACER, TORQUE BUMPER
-
271623-459 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
280608-433 BUMPER, TORQUEBUMPER, TORQUE
-
290645-410 DAMPER, CLUTCHDAMPER, CLUTCH
-
308413-825 SCREW, CAPSCREW, CAP
-
318050-252 WASHERWASHER
-
321623-128 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
330725-527 CLUTCH, DRIVECLUTCH, DRIVE
-
340627-036 BELT, DRIVEBELT, DRIVE
-
350623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
360623-804 BOLT, CLUTCHBOLT, CLUTCH
