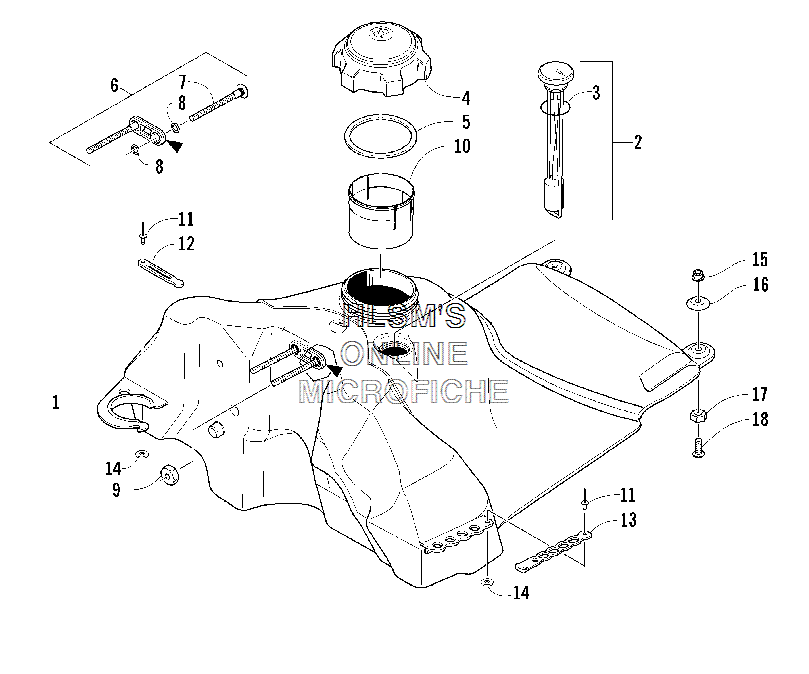

GAS TANK ASSY. для Arctic Cat M7 EFI 153'' (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10770-732 TANK, GAS (INC. 2, 14)TANK, GAS (INC. 2, 14)
-
21670-725 GAUGE, GAS W/SEAL (INC. 3)GAUGE, GAS W/SEAL (INC. 3)
-
31670-743 SEAL, GAS GAUGESEAL, GAS GAUGE
-
41670-447 CAP, GAS TANK (INC. 5)CAP, GAS TANK (INC. 5)
-
51670-511 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
61705-116 PLATE, MOUNTING, STEERING POST (INC. 7 AND TWO NO. 8)PLATE, MOUNTING, STEERING POST (INC. 7 AND TWO NO. 8)
-
71623-447 BOLT, CARRIAGEBOLT, CARRIAGE
-
81623-448 O-RINGO-RING
-
91623-483 NUTNUT
-
101670-801 EXTENSION, NECK, GAS TANKEXTENSION, NECK, GAS TANK
-
118061-630 RIVET, BLIND-LF AA68 BLACKRIVET, BLIND-LF AA68 BLACK
-
123606-173 STRAP, HOLD, DOWN, COOLANT TANKSTRAP, HOLD, DOWN, COOLANT TANK
-
134606-160 STRAP, HOLD, DOWN, SPARK PLUGSTRAP, HOLD, DOWN, SPARK PLUG
-
148050-157 WASHERWASHER
-
158047-366 NUT, LOCKNUT, LOCK
-
160123-765 WASHER, CUPWASHER, CUP
-
171623-077 NUTNUT
-
188017-582 SCREW, MACHINESCREW, MACHINE
