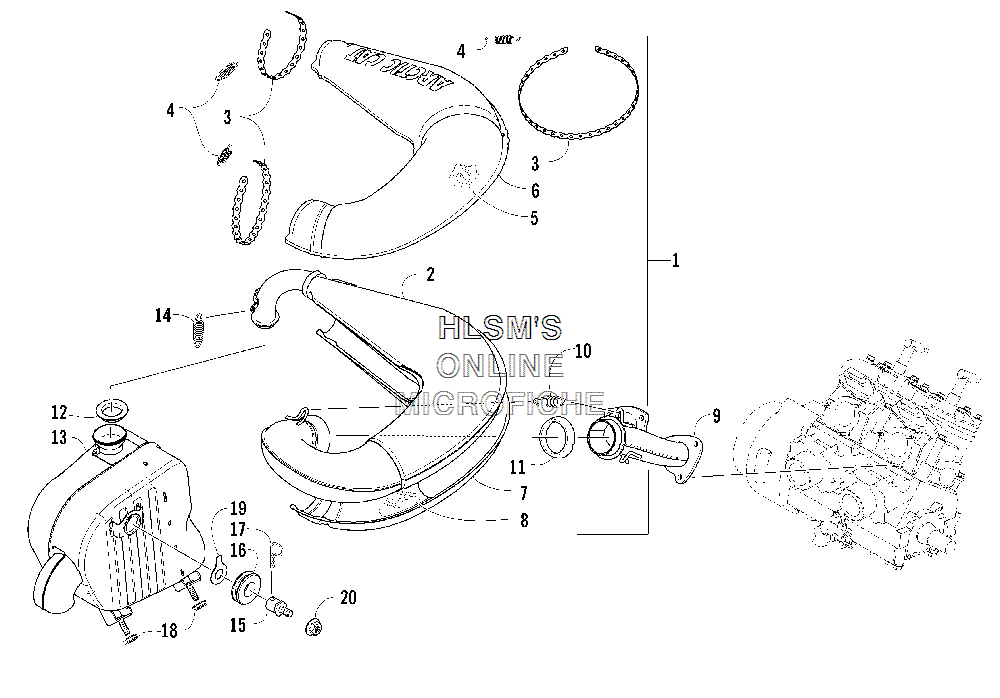

EXHAUST ASSY. для Arctic Cat M7 EFI 153'' (WEST YELLOWSTONE GREEN) - 2006 года выпуска

№

Артикул

Название
1

1712-119 CHAMBER, EXPANSION, ASSY. (INC. 2, 8)

CHAMBER, EXPANSION, ASSY. (INC. 2, 8)

91 720 ₽
2

1712-118 CHAMBER, EXPANSION

CHAMBER, EXPANSION

67 390 ₽
3

0624-526 TIE, PERFORATED BAND (5 FT)

TIE, PERFORATED BAND (5 FT)

3 110 ₽
3

0624-541 TIE, PERFORATED BAND (25 FT)

TIE, PERFORATED BAND (25 FT)

16 430 ₽
4

1612-178 SPRING, EXHAUST

SPRING, EXHAUST

580 ₽
5

1612-590 PACKING, EXPANSION CHAMBER (UPPER)

PACKING, EXPANSION CHAMBER (UPPER)

4 570 ₽
6

1612-574 COVER, EXPANSION CHAMBER (UPPER)

COVER, EXPANSION CHAMBER (UPPER)

13 720 ₽
7

1612-804 COVER, EXPANSION CHAMBER (LOWER)

COVER, EXPANSION CHAMBER (LOWER)

15 390 ₽
8

1612-805 PACKING, EXPANSION CHAMBER (LOWER)

PACKING, EXPANSION CHAMBER (LOWER)

2 490 ₽
9

1712-104 MANIFOLD, EXHAUST

MANIFOLD, EXHAUST

34 730 ₽
10

0612-820 SPRING, EXHAUST

SPRING, EXHAUST

560 ₽
11

1612-014 GASKET, EXHAUST

GASKET, EXHAUST

5 400 ₽
12

1612-323 GASKET, EXHAUST, TAILPIPE

GASKET, EXHAUST, TAILPIPE

4 360 ₽
13

1712-144 RESONATOR

RESONATOR

98 590 ₽
14

0612-471 SPRING, EXTENSION

SPRING, EXTENSION

1 870 ₽
15

1623-374 PIN, MOUNTING, RESONATOR

PIN, MOUNTING, RESONATOR

2 910 ₽
16

1623-375 GROMMET

GROMMET

830 ₽
17

1623-379 CLIP, HAIRPIN

CLIP, HAIRPIN

440 ₽
18

1612-873 GROMMET

GROMMET

650 ₽
19

1612-927 WASHER, TAB

WASHER, TAB

2 280 ₽
20

8047-486 NUT, LOCK

NUT, LOCK

150 ₽
