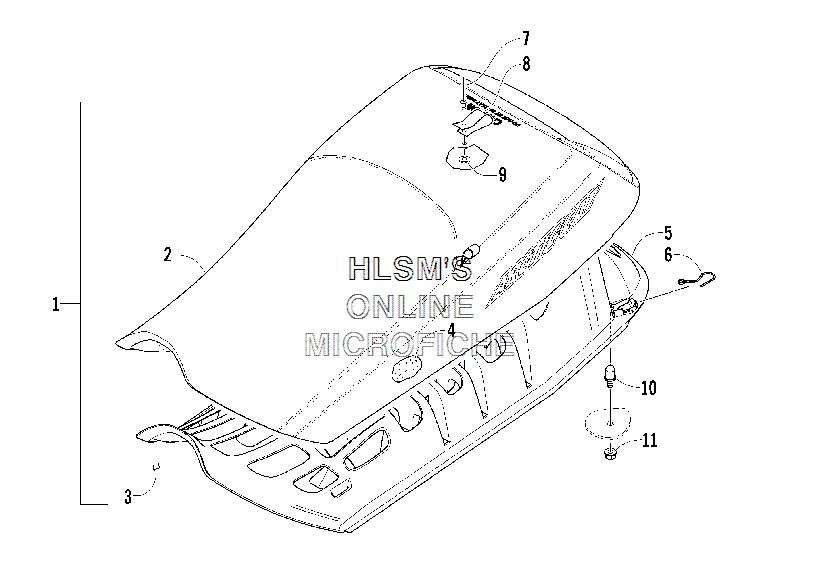

SEAT ASSY. для Arctic Cat M7 EFI 153'' (WEST YELLOWSTONE GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
17998-716 COMPLETE SEAT ASSY. (INC. 2, 9)COMPLETE SEAT ASSY. (INC. 2, 9)
-
23706-096 COVER, SEATCOVER, SEAT
-
30624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
42706-647 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
53606-430 SEAT, BASESEAT, BASE
-
61623-393 CLIP, RETAINING, SEAT, BASECLIP, RETAINING, SEAT, BASE
-
78061-508 RIVET, BLINDRIVET, BLIND
-
83606-813 STRAP, HOLD, DOWN, SEAT PADSTRAP, HOLD, DOWN, SEAT PAD
-
98050-127 WASHERWASHER
-
101623-458 STUD, LATCH, SEAT, BASESTUD, LATCH, SEAT, BASE
-
118047-426 NUT, LOCKNUT, LOCK
