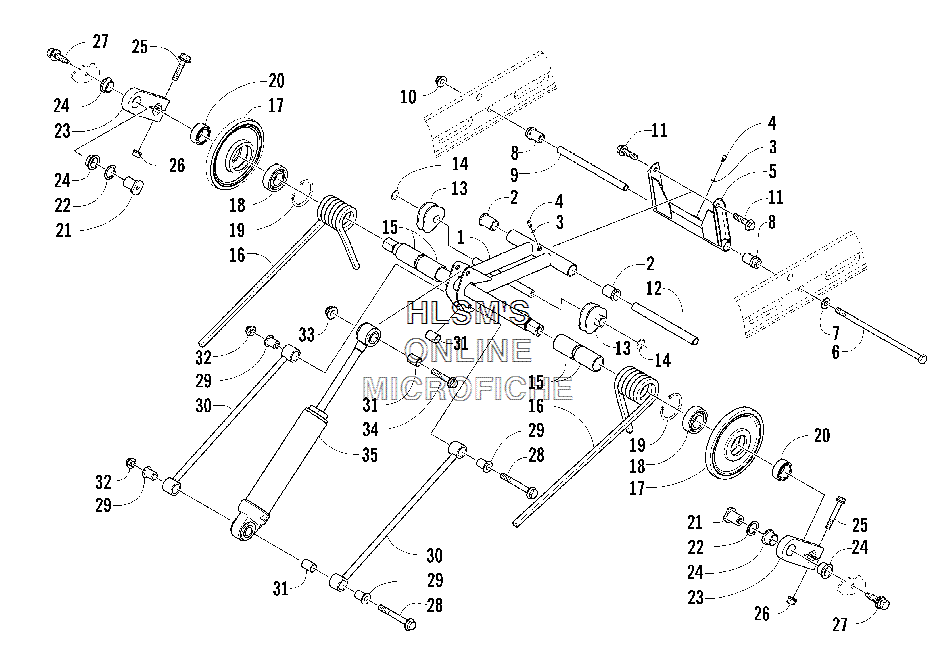

REAR SUSPENSION REAR ARM ASSY. для Arctic Cat M7 EFI 162'' CT (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10704-980 ARM, IDLER (INC. 2 AND ONE NO. 3, 4)ARM, IDLER (INC. 2 AND ONE NO. 3, 4)
-
22604-128 BUSHING, FLAREDBUSHING, FLARED
-
31623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
41623-010 FITTING, GREASE, SELF, TAPPINGFITTING, GREASE, SELF, TAPPING
-
50704-976 ARM, REAR (INC. ONE NO. 3, 4)ARM, REAR (INC. ONE NO. 3, 4)
-
61623-037 SCREW, CAPSCREW, CAP
-
70623-439 WASHERWASHER
-
82604-664 BUSHING, REAR ARMBUSHING, REAR ARM
-
92604-663 TUBE, AXLETUBE, AXLE
-
108047-490 NUT, LOCKNUT, LOCK
-
118020-220 SCREW, CAPSCREW, CAP
-
122604-176 AXLE, ALUMINUMAXLE, ALUMINUM
-
131604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
131604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
140623-138 RING, RETAININGRING, RETAINING
-
152604-764 SLEEVE, SPRINGSLEEVE, SPRING
-
161704-354 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
161704-355 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
171604-690 WHEEL, IDLER (INC. 18, 19)WHEEL, IDLER (INC. 18, 19)
-
180107-598 BEARINGBEARING
-
190123-798 RING, RETAININGRING, RETAINING
-
201604-507 SPACER, PIVOT, IDLER ARMSPACER, PIVOT, IDLER ARM
-
211604-181 AXLE, POWDER METALAXLE, POWDER METAL
-
221604-187 WASHER, PIVOT, IDLER ARMWASHER, PIVOT, IDLER ARM
-
230704-981 ARM, PIVOT IDLER (INC. 24, 26)ARM, PIVOT IDLER (INC. 24, 26)
-
241604-202 BUSHING, FLAREDBUSHING, FLARED
-
258020-138 SCREW, CAPSCREW, CAP
-
268048-426 NUT, LOCKNUT, LOCK
-
271623-166 SCREW, CAPSCREW, CAP
-
288020-233 SCREW, CAPSCREW, CAP
-
291604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
300704-350 LINK, REAR SHOCKLINK, REAR SHOCK
-
311604-139 SLEEVE, SHOCKSLEEVE, SHOCK
-
328041-486 NUT, LOCKNUT, LOCK
-
338047-486 NUT, LOCKNUT, LOCK
-
348020-226 SCREW, CAPSCREW, CAP
-
351704-467 SHOCK ABSORBER, REAR ARMSHOCK ABSORBER, REAR ARM
