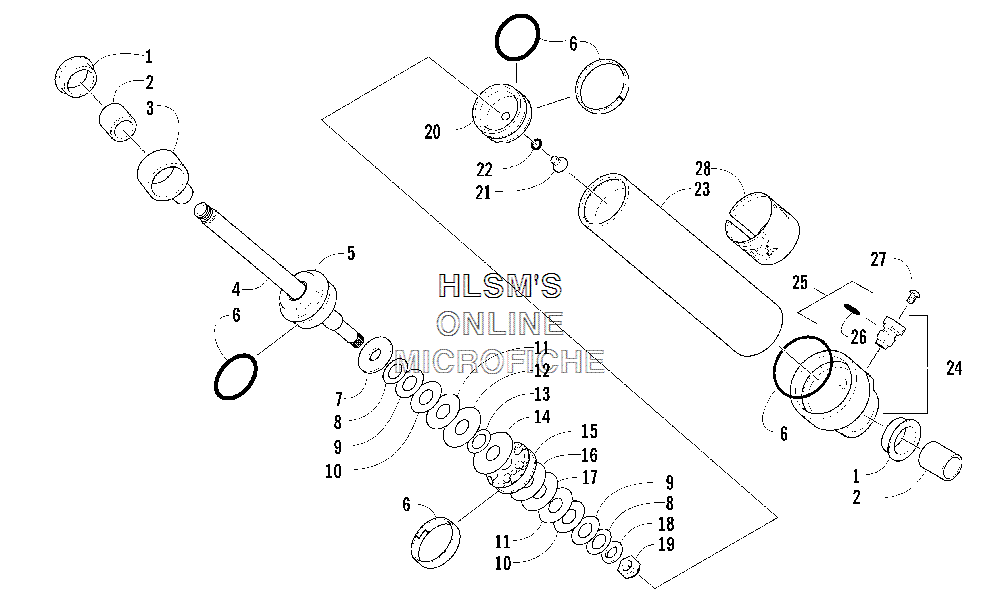

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M7 EFI 162'' CT (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11604-222 BUSHING,REAR ARM SHOCK (FOX ONLY)BUSHING,REAR ARM SHOCK (FOX ONLY)
-
22604-223 SLEEVE, EYELETSLEEVE, EYELET
-
30604-893 EYELET, SHOCK (FOX ONLY)EYELET, SHOCK (FOX ONLY)
-
42604-863 ROD, SHOCKROD, SHOCK
-
52604-413 BEARING, ASSY.BEARING, ASSY.
-
62604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
70603-540 WASHER, TOP OUTWASHER, TOP OUT
-
80603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
90603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
100603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
110603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
120603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
130603-332 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
140603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
151604-437 PISTON, 0.039 IN., ORIFICEPISTON, 0.039 IN., ORIFICE
-
160603-883 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
170603-345 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
180603-389 WASHER, BACKUPWASHER, BACKUP
-
190603-301 NUT, LOCKNUT, LOCK
-
202604-816 PISTON, FLOATING, ASSY.PISTON, FLOATING, ASSY.
-
211604-316 SCREW, RELIEF (INC. 22)SCREW, RELIEF (INC. 22)
-
221604-425 O-RING (FOX ONLY)O-RING (FOX ONLY)
-
232604-864 BODY, SHOCKBODY, SHOCK
-
242604-817 END CAP, SHOCK (INC. 25, 26)END CAP, SHOCK (INC. 25, 26)
-
250703-341 VALVE, PRESSURE (INC. 26)VALVE, PRESSURE (INC. 26)
-
261604-318 O-RINGO-RING
-
270624-097 SCREW, VALVESCREW, VALVE
-
282604-897 DECAL, SHOCKDECAL, SHOCK
-
02639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
01704-467 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
