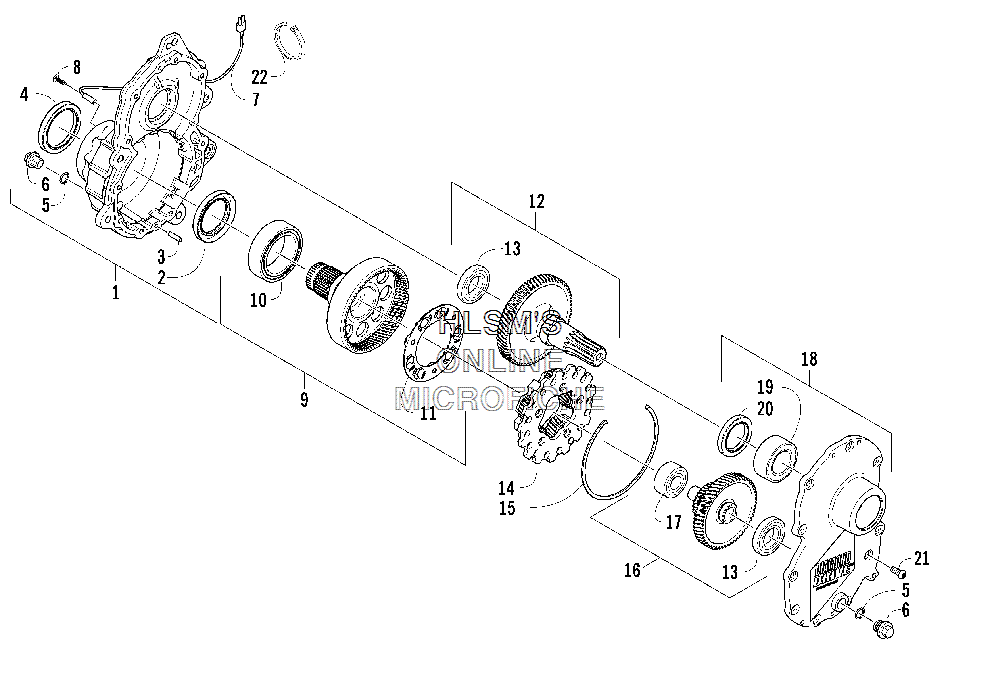

GEARCASE ASSY. для Arctic Cat M7 EFI Ltd162'' CT (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
10702-789 GEARCASE (INC. 2, 4 AND ONE NO. 5, 6)GEARCASE (INC. 2, 4 AND ONE NO. 5, 6)
-
21602-344 SEAL, OILSEAL, OIL
-
31602-345 PIN, DOWELPIN, DOWEL
-
41602-766 SEAL, OILSEAL, OIL
-
51602-213 O-RINGO-RING
-
60623-293 PLUG, GEARCASEPLUG, GEARCASE
-
70630-212 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
81623-343 CLIP, X-MAS TREECLIP, X-MAS TREE
-
90702-675 GEAR, RING-76T W/BRG & MAGNET (INC. 10, 11)GEAR, RING-76T W/BRG & MAGNET (INC. 10, 11)
-
101602-318 BEARING (50X72X20MM)BEARING (50X72X20MM)
-
111602-745 RETAINER, MAGNETRETAINER, MAGNET
-
120702-688 SHAFT, INPUT, 57T (INC. ONE NO. 13)SHAFT, INPUT, 57T (INC. ONE NO. 13)
-
131602-340 BEARING (25MM X 47MM X 8MM)BEARING (25MM X 47MM X 8MM)
-
141602-349 GEAR, PLANETARY, 5 PINIONGEAR, PLANETARY, 5 PINION
-
151602-731 RING, RETAINING, PLANETARY GEARRING, RETAINING, PLANETARY GEAR
-
160702-712 GEAR, TRANSFER, 63T/34T (INC. ONE NO. 13 AND 17)GEAR, TRANSFER, 63T/34T (INC. ONE NO. 13 AND 17)
-
171602-348 BEARING, GEAR-OUTPUT (17MMX40MM)BEARING, GEAR-OUTPUT (17MMX40MM)
-
180702-803 COVER, GEARCASE (INC. 19, 20 AND ONE NO. 5, 6)COVER, GEARCASE (INC. 19, 20 AND ONE NO. 5, 6)
-
191602-341 BEARING,SHAFT-INPUT (30MM)BEARING,SHAFT-INPUT (30MM)
-
201602-875 SEAL, OIL (2.099 X 1.311 X .315)SEAL, OIL (2.099 X 1.311 X .315)
-
211623-075 SCREW, MACHINESCREW, MACHINE
-
220123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
04639-025 FLUID, GEARCASE, CASEFLUID, GEARCASE, CASE
