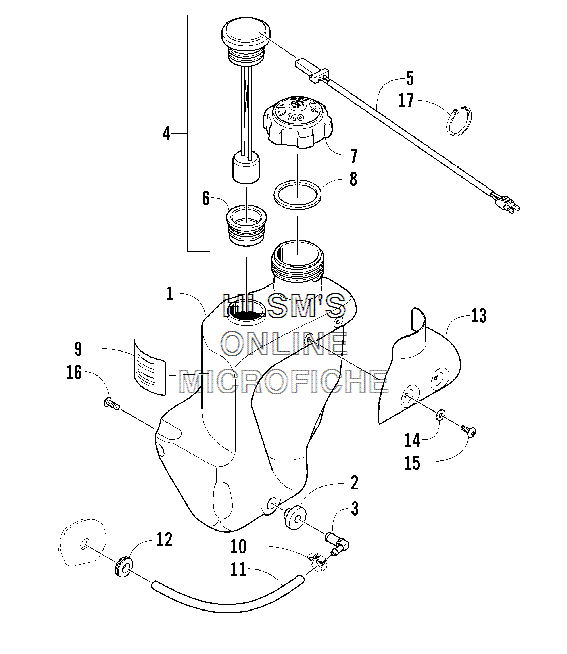

OIL TANK ASSY. для Arctic Cat M7 EFI Ltd162'' CT (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
11670-604 TANK, OILTANK, OIL
-
21670-325 GROMMETGROMMET
-
31670-481 FITTING, ELBOWFITTING, ELBOW
-
40609-503 SENSOR, LOW OIL, ASSY. (INC. 5, 6)SENSOR, LOW OIL, ASSY. (INC. 5, 6)
-
50609-518 SWITCH, OIL SENSOR W/HARNESSSWITCH, OIL SENSOR W/HARNESS
-
60609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
-
71670-365 CAP, VENTED- OIL IMPRINTED (INC. 8)CAP, VENTED- OIL IMPRINTED (INC. 8)
-
80109-733 SEAL, CAP, OIL TANKSEAL, CAP, OIL TANK
-
94611-532 DECAL, OIL TANKDECAL, OIL TANK
-
100124-045 CLAMP, HOSECLAMP, HOSE
-
110610-015 HOSE, OIL, 100 FTHOSE, OIL, 100 FT
-
110610-016 HOSE, OIL (25 FT)HOSE, OIL (25 FT)
-
121623-256 GROMMET, RUBBERGROMMET, RUBBER
-
133606-982 SHIELD, HEATSHIELD, HEAT
-
148050-157 WASHER, FLAT (#10 X .500 X .049)WASHER, FLAT (#10 X .500 X .049)
-
158017-395 SCREW, MACHINE (10-24X.375 G)SCREW, MACHINE (10-24X.375 G)
-
168017-577 SCREW, MACHINE (1/4-20 X 1/2)SCREW, MACHINE (1/4-20 X 1/2)
-
170123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
