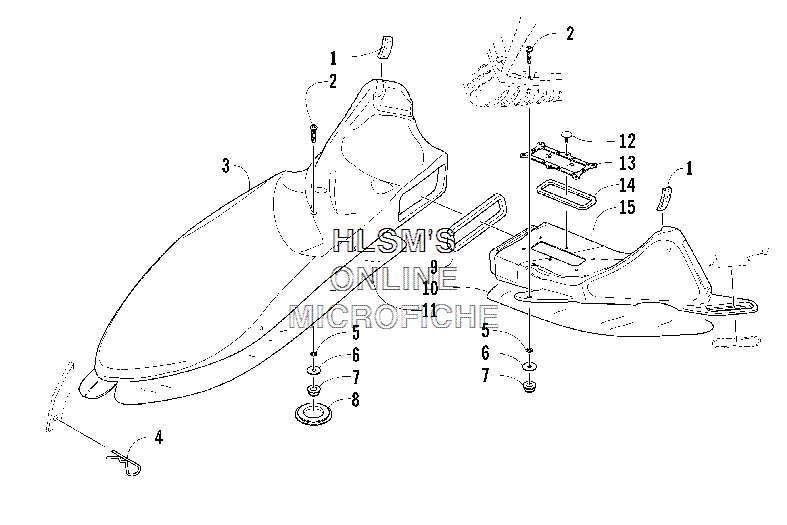

AIR INTAKE ASSY. для Arctic Cat M7 EFI Ltd162'' (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
10617-500 FOAM, AIR INTAKEFOAM, AIR INTAKE
-
28017-581 SCREW, MACHINESCREW, MACHINE
-
33606-480 INTAKE, AIR - RIGHTINTAKE, AIR - RIGHT
-
41623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
51623-409 NUT, PUSHNUT, PUSH
-
60623-184 WASHER, FLAT (1/4 X 1.0 Z & Y)WASHER, FLAT (1/4 X 1.0 Z & Y)
-
78047-366 NUT, LOCKNUT, LOCK
-
80623-600 PLUGPLUG
-
90617-488 FOAM, AIR INTAKEFOAM, AIR INTAKE
-
103606-811 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
113606-779 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
120623-165 CLIP, X-MAS TREE-5/32CLIP, X-MAS TREE-5/32
-
131670-517 SCREEN, VENTSCREEN, VENT
-
140617-499 SEAL, AIR INTAKESEAL, AIR INTAKE
-
153606-481 INTAKE, AIR - LEFTINTAKE, AIR - LEFT
