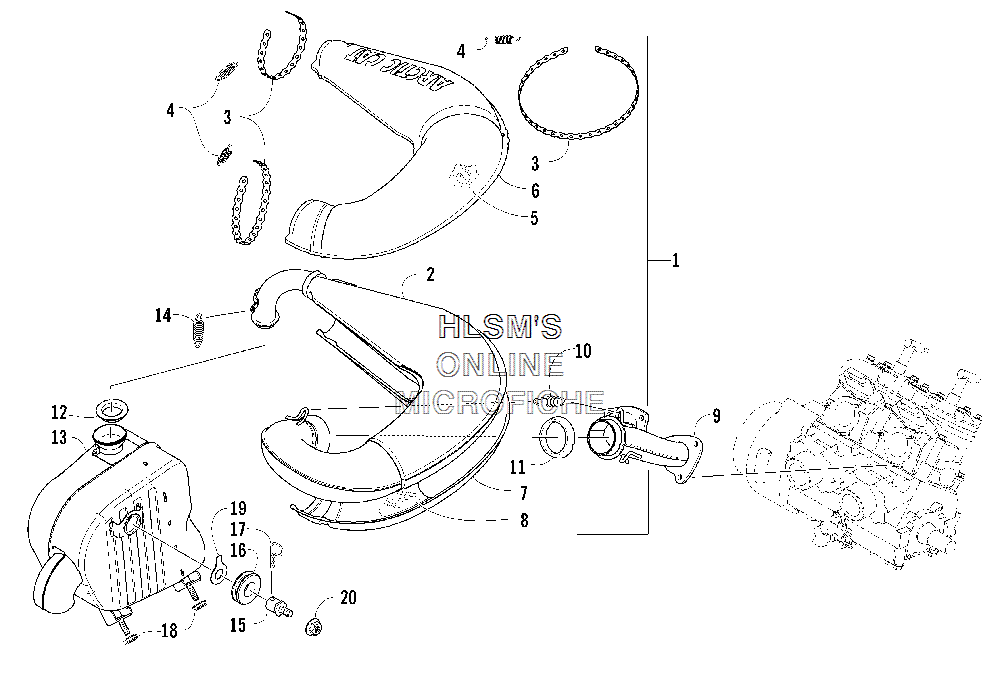

EXHAUST ASSY. для Arctic Cat M7 EFI Ltd162'' (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
11712-237 CHAMBER, EXPANSION - ASSY. (INC. 2-8)CHAMBER, EXPANSION - ASSY. (INC. 2-8)
-
21712-236 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
30624-526 TIE, PERFORATED BAND - 5 FTTIE, PERFORATED BAND - 5 FT
-
30624-541 TIE, PERFORATED BAND - 25 FTTIE, PERFORATED BAND - 25 FT
-
41612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
51612-590 PACKING, EXPANSION CHAMBER - UPPERPACKING, EXPANSION CHAMBER - UPPER
-
61612-574 COVER, EXPANSION CHAMBER - UPPERCOVER, EXPANSION CHAMBER - UPPER
-
71612-804 COVER, EXPANSION CHAMBER - LOWERCOVER, EXPANSION CHAMBER - LOWER
-
81612-805 PACKING, EXPANSION CHAMBER - LOWERPACKING, EXPANSION CHAMBER - LOWER
-
91712-104 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
100612-820 SPRING, EXHAUSTSPRING, EXHAUST
-
111612-014 GASKET, EXHAUSTGASKET, EXHAUST
-
121612-323 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
131712-144 RESONATORRESONATOR
-
140612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
151623-374 PIN, MOUNTING - RESONATORPIN, MOUNTING - RESONATOR
-
161623-375 GROMMET, RUBBER (3/4 ID X1 5/8OD)GROMMET, RUBBER (3/4 ID X1 5/8OD)
-
171623-379 CLIP, HAIRPINCLIP, HAIRPIN
-
181612-873 GROMMET, RUBBER-RESONATOR MOUNTGROMMET, RUBBER-RESONATOR MOUNT
-
191612-927 WASHER, TABWASHER, TAB
-
208047-486 NUT, LOCKNUT, LOCK
