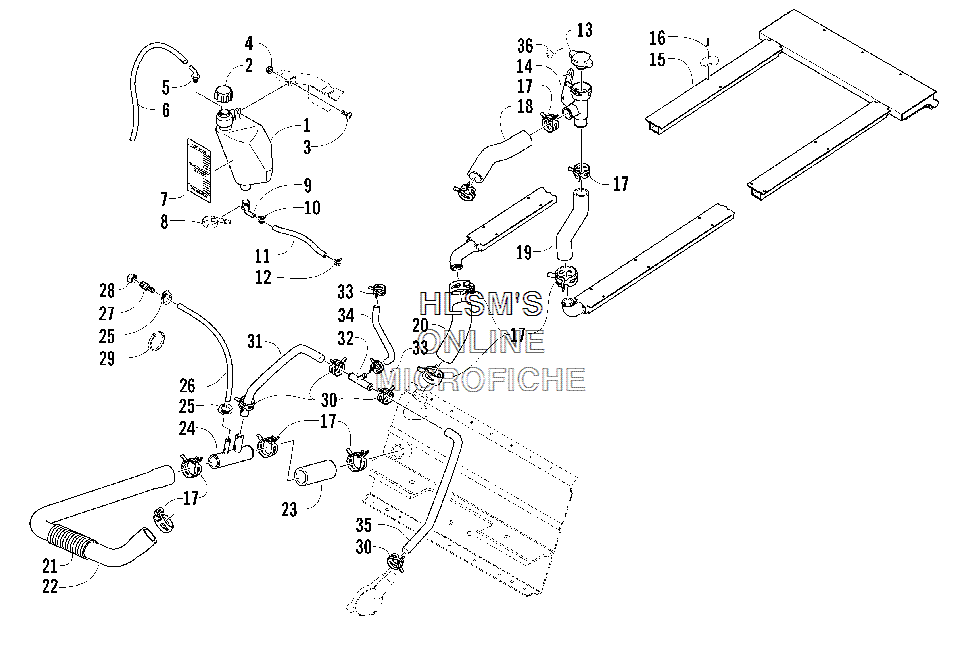

COOLING ASSEMBLY для Arctic Cat Panther 660 TOURING INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
11670-246 TANK, COOLANTTANK, COOLANT
-
20670-035 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINESCREW, MACHINE
-
48048-366 NUT, LOCKNUT, LOCK
-
50670-242 FITTING, VENTFITTING, VENT
-
60610-010 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
74611-093 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-075 FITTING, ELBOWFITTING, ELBOW
-
101623-234 CLAMP, HOSECLAMP, HOSE
-
116101-001 HOSE (100 FT)HOSE (100 FT)
-
116101-009 HOSE (50 FT)HOSE (50 FT)
-
121623-042 CLAMPCLAMP
-
132606-284 CAP, FILLER NECKCAP, FILLER NECK
-
143606-857 NECK, FILLERNECK, FILLER
-
152706-078 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
168060-706 RIVETRIVET
-
170623-736 CLAMP, HOSECLAMP, HOSE
-
180610-653 HOSE, COOLANT, FILLER NECK/ENGINEHOSE, COOLANT, FILLER NECK/ENGINE
-
190610-652 HOSE, FILLER NECK/REAR HEAT EXCHANGERHOSE, FILLER NECK/REAR HEAT EXCHANGER
-
200610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
-
210619-619 PROTECTOR, HOSEPROTECTOR, HOSE
-
220610-683 HOSE, COOLANT, T, FITTING/WATER PUMPHOSE, COOLANT, T, FITTING/WATER PUMP
-
230610-539 HOSE, COOLANT, T, FITTING/FRONT HEAT EXCHANGERHOSE, COOLANT, T, FITTING/FRONT HEAT EXCHANGER
-
242606-502 T, FITTING, DOUBLET, FITTING, DOUBLE
-
250623-373 CLAMP, HOSECLAMP, HOSE
-
260610-076 HOSE, COOLANT, DRAIN (10 FT)HOSE, COOLANT, DRAIN (10 FT)
-
270623-976 ADAPTER, FITTINGADAPTER, FITTING
-
281670-303 PLUG, ADAPTERPLUG, ADAPTER
-
290123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
301623-285 CLAMP, HOSECLAMP, HOSE
-
310610-520 HOSE, COOLANT, Y, FITTING/T, FITTINGHOSE, COOLANT, Y, FITTING/T, FITTING
-
322606-625 Y, FITTINGY, FITTING
-
331623-197 CLAMP, HOSECLAMP, HOSE
-
340610-518 HOSE, COOLANT, THROTTLE BODY/Y, FITTINGHOSE, COOLANT, THROTTLE BODY/Y, FITTING
-
350610-519 HOSE, COOLANT, THERMOSTAT/Y, FITTINGHOSE, COOLANT, THERMOSTAT/Y, FITTING
-
361623-547 SCREW, MACHINESCREW, MACHINE
