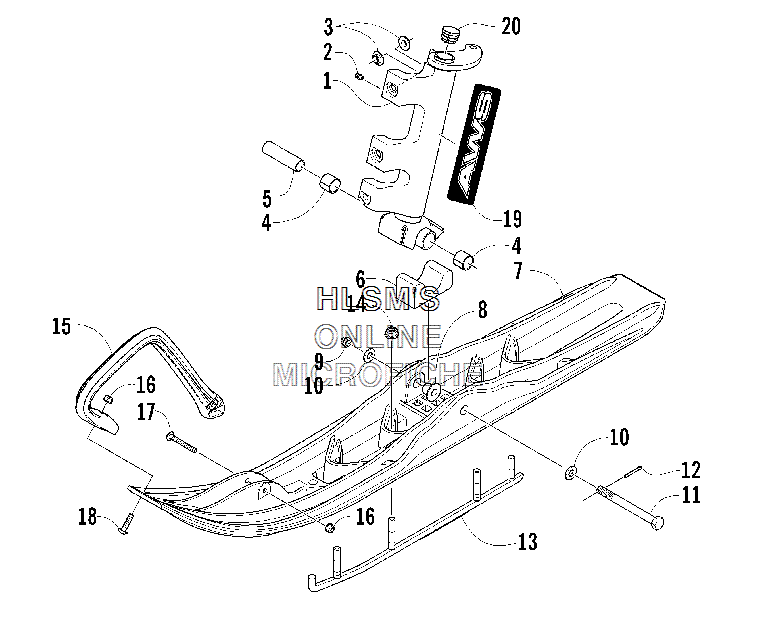

SKI AND SPINDLE ASSEMBLY для Arctic Cat Panther 660 TOURING INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
11703-998 SPINDLE, STEERING (RIGHT) (INC. 2, 4)SPINDLE, STEERING (RIGHT) (INC. 2, 4)
-
11703-999 SPINDLE, STEERING (LEFT) (INC. 2, 4)SPINDLE, STEERING (LEFT) (INC. 2, 4)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
30603-647 INSERT, SPINDLEINSERT, SPINDLE
-
40603-158 BEARINGBEARING
-
52603-548 AXLE, SPINDLEAXLE, SPINDLE
-
60603-036 DAMPER, SKIDAMPER, SKI
-
72603-599 SKISKI
-
82603-397 INSERT, SKIINSERT, SKI
-
90123-296 NUT, LOCKNUT, LOCK
-
100623-728 WASHERWASHER
-
110623-776 SCREW, CAPSCREW, CAP
-
120123-458 PIN, COTTERPIN, COTTER
-
131703-218 WEARBARWEARBAR
-
148047-486 NUT, LOCKNUT, LOCK
-
152603-598 HANDLE, PLASTIC SKIHANDLE, PLASTIC SKI
-
168047-366 NUT, LOCKNUT, LOCK
-
178017-587 SCREW, MACHINESCREW, MACHINE
-
188017-582 SCREW, MACHINESCREW, MACHINE
-
196611-612 DECAL, "AWS", SPINDLE (RIGHT)DECAL, "AWS", SPINDLE (RIGHT)
-
196611-613 DECAL, "AWS", SPINDLE (LEFT)DECAL, "AWS", SPINDLE (LEFT)
-
200623-831 CAP, SPINDLECAP, SPINDLE
