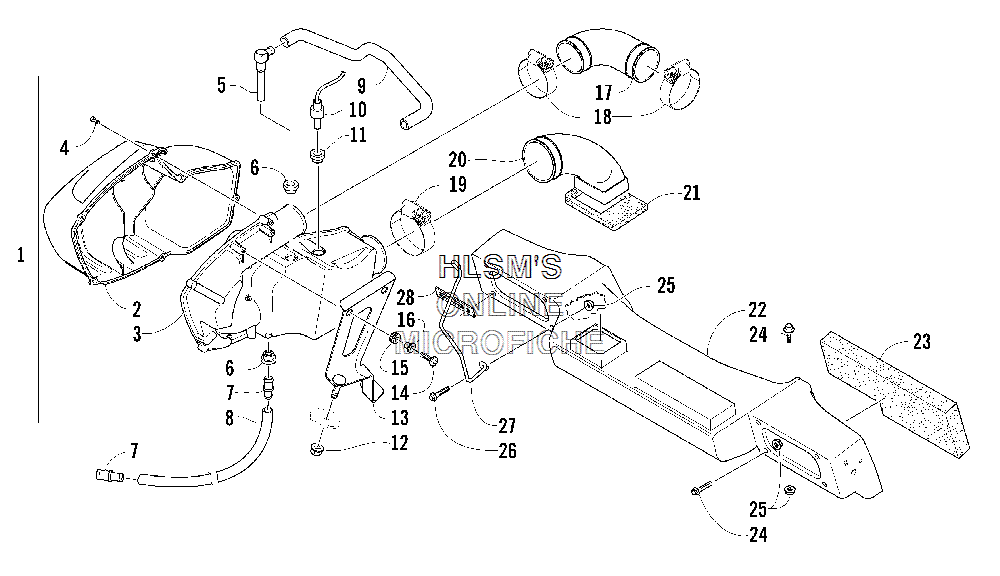

AIR SILENCER ASSEMBLY для Arctic Cat Panther 660 TOURING - 2006 года выпуска
-
№АртикулНазвание
-
10770-605 SILENCER, AIR, ASSEMBLY (INC. 2, 6 AND ONE NO. 7)SILENCER, AIR, ASSEMBLY (INC. 2, 6 AND ONE NO. 7)
-
21670-434 COVER, OUTERCOVER, OUTER
-
30770-621 COVER, INNERCOVER, INNER
-
48019-397 SCREW, CAPSCREW, CAP
-
51670-515 FITTING, ELBOWFITTING, ELBOW
-
61670-507 GROMMETGROMMET
-
71670-516 FITTING, STRAIGHTFITTING, STRAIGHT
-
80610-529 HOSE, DRAINHOSE, DRAIN
-
90610-489 HOSE, BREATHERHOSE, BREATHER
-
103006-656 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
113006-657 GROMMETGROMMET
-
128048-486 NUT, LOCKNUT, LOCK
-
130707-737 BRACKET, MOUNTING, AIR SILENCERBRACKET, MOUNTING, AIR SILENCER
-
141623-135 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
151670-545 ISOLATOR, RUBBERISOLATOR, RUBBER
-
160607-737 WASHERWASHER
-
170610-491 TUBE, OUTLETTUBE, OUTLET
-
180214-027 CLAMP, HOSECLAMP, HOSE
-
190214-032 CLAMP, TUBECLAMP, TUBE
-
200610-490 TUBE, INLETTUBE, INLET
-
210617-410 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
221670-432 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
230617-270 FOAM, PLENUMFOAM, PLENUM
-
248020-039 SCREW, CAPSCREW, CAP
-
258048-366 NUT, LOCKNUT, LOCK
-
268020-040 SCREW, CAPSCREW, CAP
-
270707-705 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
283002-964 CLAMP, WIRECLAMP, WIRE
