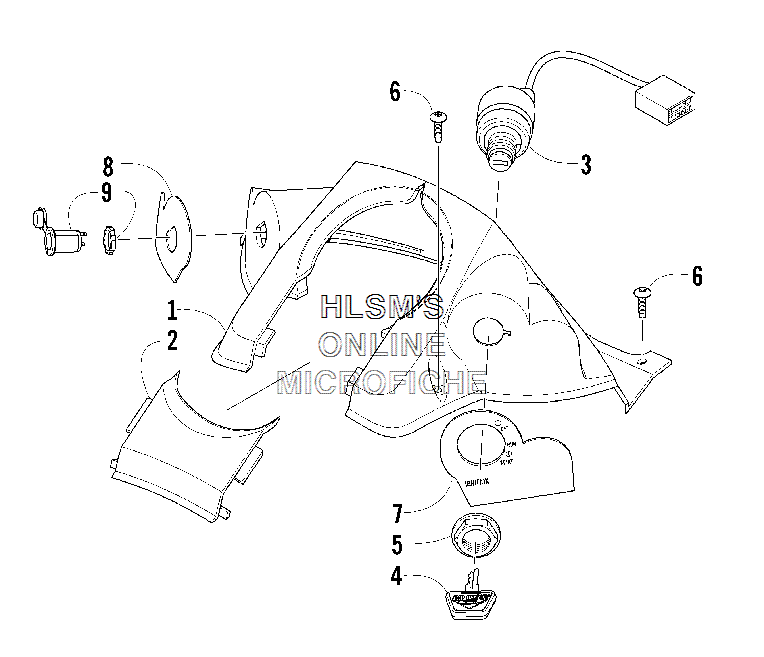

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Panther 660 TOURING - 2006 года выпуска
-
№АртикулНазвание
-
13606-810 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
30609-698 SWITCH, IGNITION (INC. 4, 5)SWITCH, IGNITION (INC. 4, 5)
-
50609-707 NUT, RETAININGNUT, RETAINING
-
61623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
76611-643 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
84611-805 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
90641-897 OUTLET, ACCESSORYOUTLET, ACCESSORY
