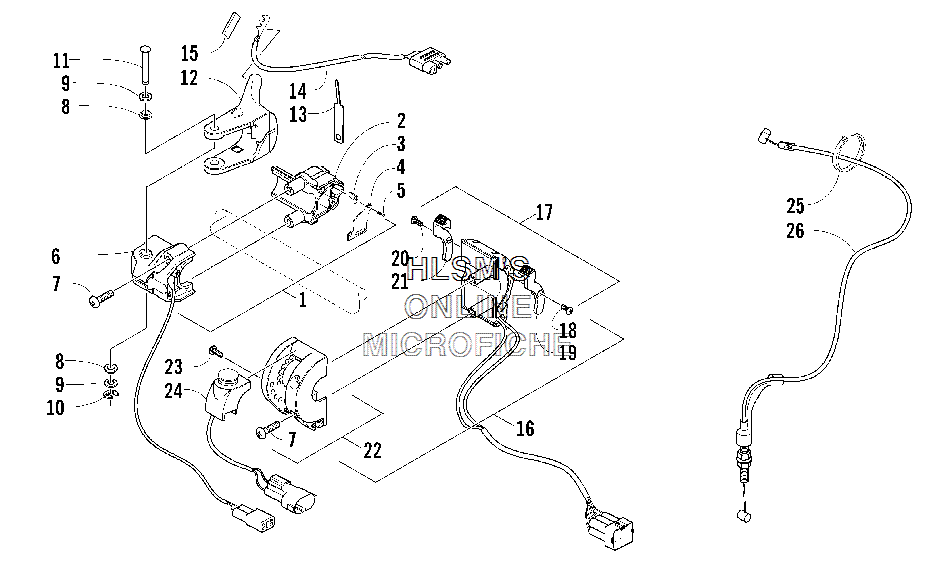

CONTROL ASSY. для Arctic Cat Sabercat 700 EFI EXT (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10609-632 CONTROL, THROTTLE - ASSY. (INC. 2-6 AND TWO NO. 7)CONTROL, THROTTLE - ASSY. (INC. 2-6 AND TWO NO. 7)
-
20609-576 CONTROL, HOUSING HALF (INC. 3-5)CONTROL, HOUSING HALF (INC. 3-5)
-
30609-611 CLIP, RETAININGCLIP, RETAINING
-
40609-615 PLATEPLATE
-
50609-612 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
60609-633 CONTROL, SWITCH HALFCONTROL, SWITCH HALF
-
70609-604 SCREW, PAN HEAD (5MM X 18MM)SCREW, PAN HEAD (5MM X 18MM)
-
80609-501 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
90609-036 WASHER, FLATWASHER, FLAT
-
100609-040 E-RINGE-RING
-
110609-577 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
120609-565 LEVER, THROTTLELEVER, THROTTLE
-
131639-963 TOOL, REMOVAL - KIT - THROTTLE CABLETOOL, REMOVAL - KIT - THROTTLE CABLE
-
140609-726 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
150617-248 PAD, INSULATORPAD, INSULATOR
-
160609-628 CONTROL, STOP SWITCH/WARMER ASSY. (INC. TWO NO. 7 AND 17-24)CONTROL, STOP SWITCH/WARMER ASSY. (INC. TWO NO. 7 AND 17-24)
-
170609-636 CONTROL, WARMER HALF (INC. 18-21)CONTROL, WARMER HALF (INC. 18-21)
-
180609-605 SCREW, MACHINESCREW, MACHINE
-
190609-573 KNOB, HANDWARMERKNOB, HANDWARMER
-
200609-606 SCREW, MACHINESCREW, MACHINE
-
210609-572 KNOB, THUMBWARMERKNOB, THUMBWARMER
-
220609-635 CONTROL, STOP SWITCH HALF (INC. 23-24)CONTROL, STOP SWITCH HALF (INC. 23-24)
-
230609-607 SCREW, PAN HEAD (4MM X 14MM)SCREW, PAN HEAD (4MM X 14MM)
-
250123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
260687-155 CABLE, THROTTLECABLE, THROTTLE
