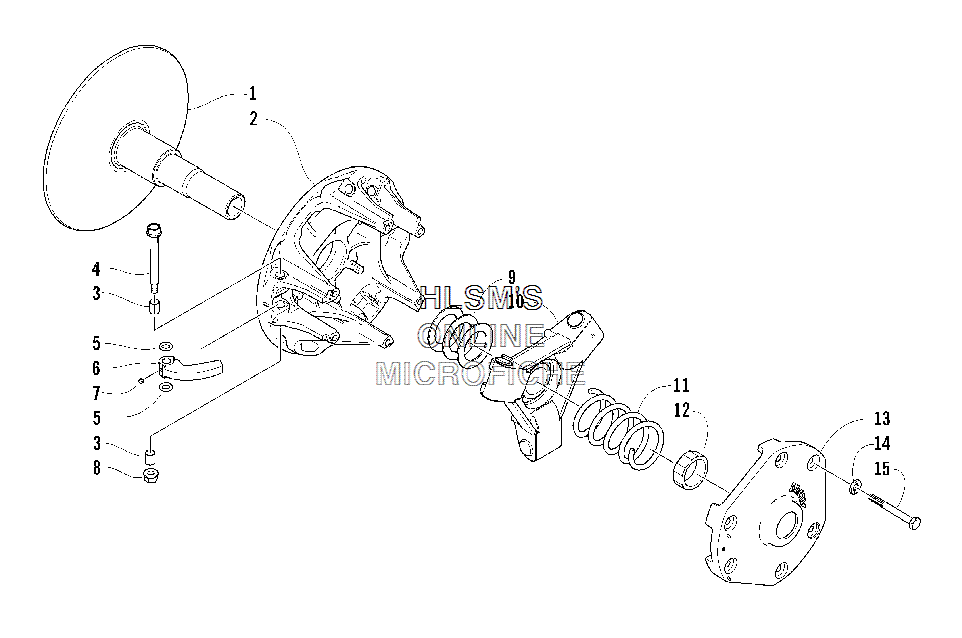

DRIVE CLUTCH для Arctic Cat Sabercat 700 EFI EXT (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
330725-503 DRIVE CLUTCH ASSY.DRIVE CLUTCH ASSY.
-
334639-217 CAM ARM KIT (INC. 3-5 AND 7-8)CAM ARM KIT (INC. 3-5 AND 7-8)
-
330746-167 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
-
10646-362 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-159 SHEAVE, MOVABLE (INC. 3)SHEAVE, MOVABLE (INC. 3)
-
30646-372 BEARINGBEARING
-
40646-747 PIN, CAM ARMPIN, CAM ARM
-
51602-692 O-RINGO-RING
-
60746-671 ARM, CAM (INC. 7)ARM, CAM (INC. 7)
-
60746-694 ARM, CAM (INC. 7) (5-9,000 FT ALT.)ARM, CAM (INC. 7) (5-9,000 FT ALT.)
-
60746-702 ARM, CAM (INC. 7) (OVER 9,000 FT ALT.)ARM, CAM (INC. 7) (OVER 9,000 FT ALT.)
-
71623-183 SCREW, SETSCREW, SET
-
88048-366 NUT, LOCKNUT, LOCK
-
90646-265 WASHER,SPACER-CLUTCH (.060)WASHER,SPACER-CLUTCH (.060)
-
90646-266 WASHER,SPACER-CLUTCH (.030)WASHER,SPACER-CLUTCH (.030)
-
100746-115 SPIDER ASSY.SPIDER ASSY.
-
110646-229 SPRING, DRIVE CLUTCH - YELLOW/WHITESPRING, DRIVE CLUTCH - YELLOW/WHITE
-
120646-140 NUT, JAM-SPIDERNUT, JAM-SPIDER
-
130746-160 COVER, DRIVE CLUTCH ASSY.COVER, DRIVE CLUTCH ASSY.
-
148051-212 WASHER, LOCK - SPRINGWASHER, LOCK - SPRING
-
151623-442 SCREW, MACHINESCREW, MACHINE
