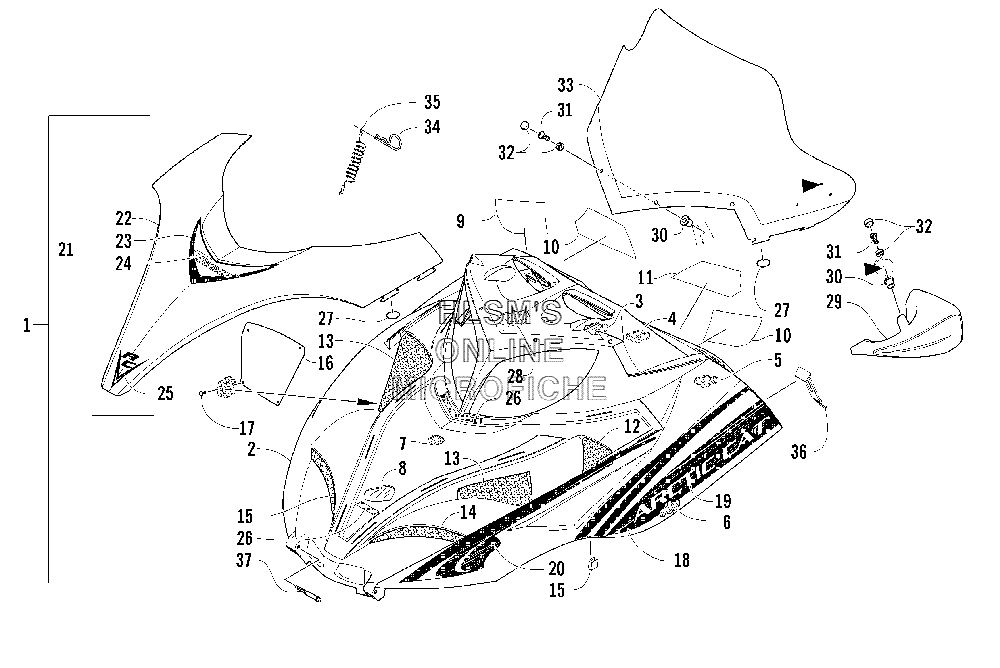

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat T660 Touring (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11718-866 HOOD W/DECALS (INC. 2, 26 AND TWELVE NO. 27)HOOD W/DECALS (INC. 2, 26 AND TWELVE NO. 27)
-
21718-623 HOOD W/O DECALS (INC. 3, 17)HOOD W/O DECALS (INC. 3, 17)
-
30717-186 FOAM, HOOD, GAUGE (RIGHT)FOAM, HOOD, GAUGE (RIGHT)
-
30717-187 FOAM, HOOD, GAUGE (LEFT)FOAM, HOOD, GAUGE (LEFT)
-
40717-190 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40717-191 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50717-188 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
50717-189 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
60717-184 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
60717-185 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
70717-193 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
83606-359 FOIL, HOOD (CENTER)FOIL, HOOD (CENTER)
-
95611-840 DECAL, WARNING (ENGLISH)DECAL, WARNING (ENGLISH)
-
95611-841 DECAL, WARNING (FRENCH)DECAL, WARNING (FRENCH)
-
105611-836 DECAL, REVERSEDECAL, REVERSE
-
115611-837 DECAL, WARNING, BREAK (INNER)DECAL, WARNING, BREAK (INNER)
-
123606-236 SCREEN, HOOD (REAR/RIGHT)SCREEN, HOOD (REAR/RIGHT)
-
123606-237 SCREEN, HOOD (REAR/LEFT)SCREEN, HOOD (REAR/LEFT)
-
134606-161 SCREEN, HOOD (MIDDLE)SCREEN, HOOD (MIDDLE)
-
143606-234 SCREEN, HOOD (FRONT/RIGHT)SCREEN, HOOD (FRONT/RIGHT)
-
143606-235 SCREEN, HOOD (FRONT/LEFT)SCREEN, HOOD (FRONT/LEFT)
-
150123-987 CLIP, RETAININGCLIP, RETAINING
-
163606-934 INSERT, SCREEN VENTINSERT, SCREEN VENT
-
170623-165 CLIP, RETAININGCLIP, RETAINING
-
186611-808 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
186611-809 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
196611-805 EMBLEM, HOODEMBLEM, HOOD
-
207611-030 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
207611-031 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
211718-867 COVER, HOOD W/DECALS (INC. 22, 25)COVER, HOOD W/DECALS (INC. 22, 25)
-
223606-253 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
236611-815 DECAL, COVER (CENTER)DECAL, COVER (CENTER)
-
246611-822 EMBLEM, COVER, "T660"EMBLEM, COVER, "T660"
-
256611-261 EMBLEM, COVEREMBLEM, COVER
-
260619-946 TAPE, FOAM, 1 FTTAPE, FOAM, 1 FT
-
270616-032 O-RINGO-RING
-
280717-192 FOAM, HOOD (UPPER MIDDLE)FOAM, HOOD (UPPER MIDDLE)
-
292639-477 MIRROR, KIT (INC. SIX NO. 30, 32)MIRROR, KIT (INC. SIX NO. 30, 32)
-
300623-845 NUT, EXPANSIONNUT, EXPANSION
-
310623-902 SCREW, MACHINESCREW, MACHINE
-
320124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
333606-408 WINDSHIELDWINDSHIELD
-
340623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
352606-247 CABLE, HOODCABLE, HOOD
-
361606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
371623-164 SCREW, SHOULDERSCREW, SHOULDER
