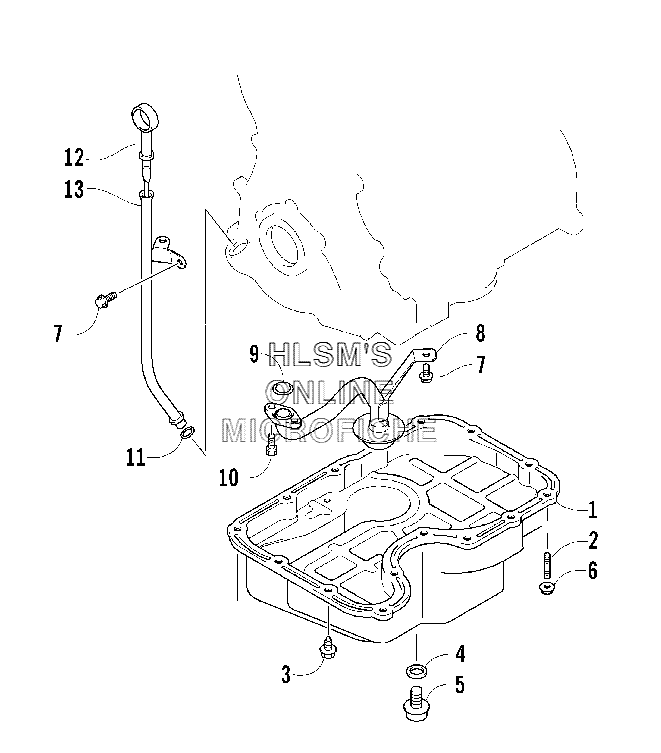

OIL PAN ASSEMBLY для Arctic Cat T660 Touring (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
13006-956 PAN, OILPAN, OIL
-
23007-029 BOLT, STUDBOLT, STUD
-
33006-107 BOLTBOLT
-
43006-113 GASKETGASKET
-
53006-118 PLUG, OIL DRAINPLUG, OIL DRAIN
-
63004-488 NUTNUT
-
73004-338 BOLTBOLT
-
83006-223 STRAINER, OIL PUMPSTRAINER, OIL PUMP
-
93006-123 O-RINGO-RING
-
103004-383 BOLTBOLT
-
113006-122 O-RINGO-RING
-
123006-882 STICK, OIL LEVELSTICK, OIL LEVEL
-
133006-568 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
