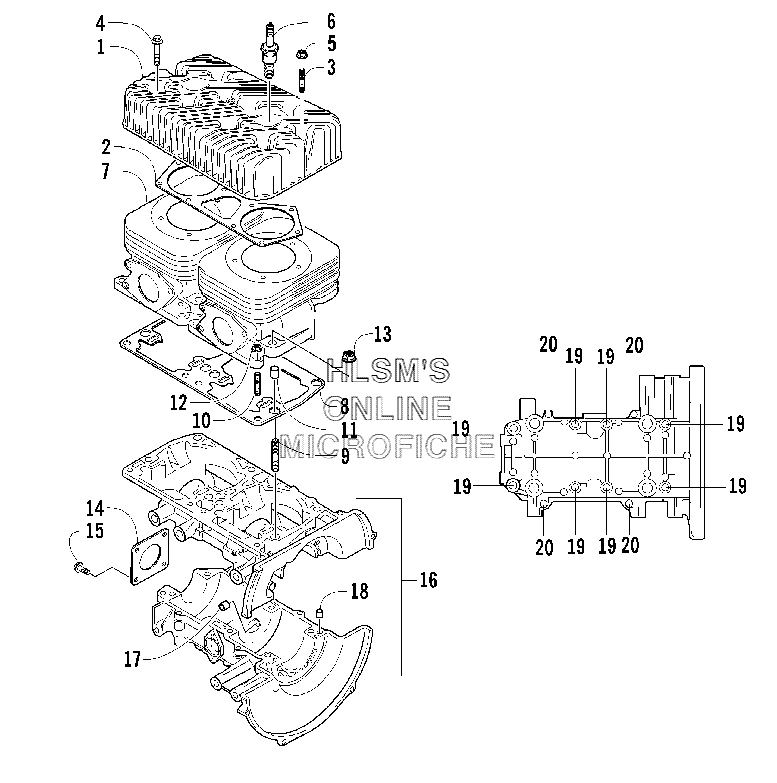

CRANKCASE AND CYLINDER для Arctic Cat Z 570 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
13005-997 HEAD, CYLINDERHEAD, CYLINDER
-
23005-998 GASKET, HEADGASKET, HEAD
-
33006-082 BOLT, STUDBOLT, STUD
-
40693-303 BOLTBOLT
-
53004-326 NUTNUT
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73005-999 CYLINDER ASSYCYLINDER ASSY
-
83006-001 GASKET, CYLINDERGASKET, CYLINDER
-
93005-207 BOLT, STUDBOLT, STUD
-
103423-089 BOLT, STUDBOLT, STUD
-
113004-975 PIN, DOWELPIN, DOWEL
-
123004-488 NUTNUT
-
133004-491 NUTNUT
-
143004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
153004-377 BOLTBOLT
-
163006-461 CRANKCASE ASSY (INC. 17, 20)CRANKCASE ASSY (INC. 17, 20)
-
173003-289 BUSHINGBUSHING
-
183005-206 PIN, DOWELPIN, DOWEL
-
193005-410 SCREW, CAPSCREW, CAP
-
203004-369 SCREW, CAPSCREW, CAP
