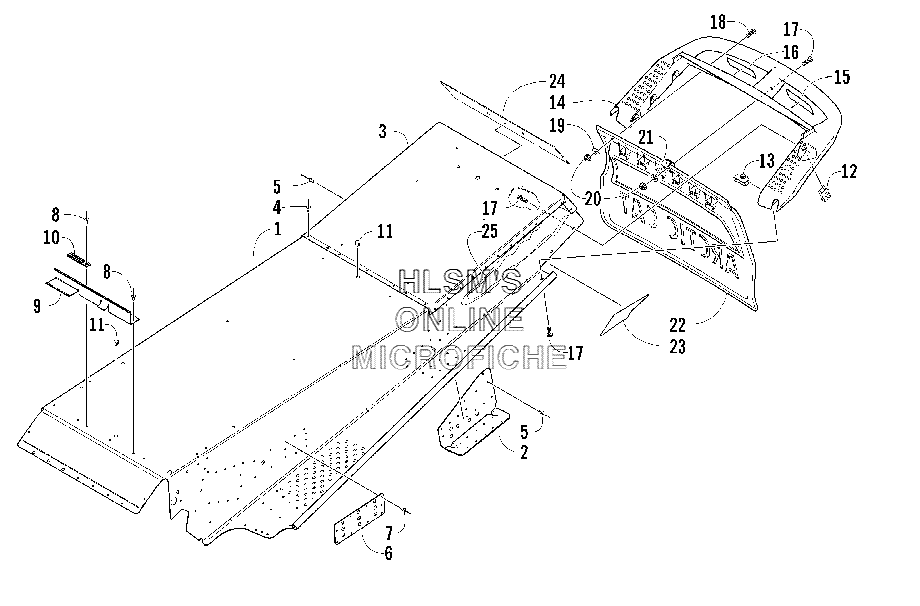

TUNNEL AND REAR BUMPER для Arctic Cat Z 570 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
11718-536 TUNNEL ASSY (INC. 2, 5)TUNNEL ASSY (INC. 2, 5)
-
21706-078 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
21706-079 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
33606-179 PLATE, END, TUNNEL (REAR)PLATE, END, TUNNEL (REAR)
-
48060-686 RIVETRIVET
-
48060-484 RIVETRIVET
-
50123-418 RIVET, SOLIDRIVET, SOLID
-
58060-506 RIVETRIVET
-
62706-111 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
70623-072 RIVET, SOLIDRIVET, SOLID
-
88060-486 RIVETRIVET
-
90607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
110623-562 PLUG, HOLEPLUG, HOLE
-
120623-771 NUT, UNUT, U
-
130623-427 NUT, UNUT, U
-
141606-200 BUMPER, REARBUMPER, REAR
-
155611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
165611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
178017-580 SCREW, MACHINESCREW, MACHINE
-
188017-580 SCREW, MACHINESCREW, MACHINE
-
188017-579 SCREW, MACHINESCREW, MACHINE
-
190623-184 WASHERWASHER
-
208048-366 NUT, LOCKNUT, LOCK
-
218050-217 WASHERWASHER
-
221606-202 SNOWFLAPSNOWFLAP
-
221606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
236611-688 DECAL, REFLECTOR (RIGHT/REAR)DECAL, REFLECTOR (RIGHT/REAR)
-
236611-689 DECAL, REFLECTOR (LEFT/REAR)DECAL, REFLECTOR (LEFT/REAR)
-
246611-644 DECAL, TUNNEL (REAR)DECAL, TUNNEL (REAR)
-
256611-570 DECAL, "Z" (RIGHT)DECAL, "Z" (RIGHT)
-
256611-571 DECAL, "Z" (LEFT)DECAL, "Z" (LEFT)
-
256611-568 DECAL, "Z" (RIGHT)DECAL, "Z" (RIGHT)
-
256611-569 DECAL, "Z" (LEFT)DECAL, "Z" (LEFT)
