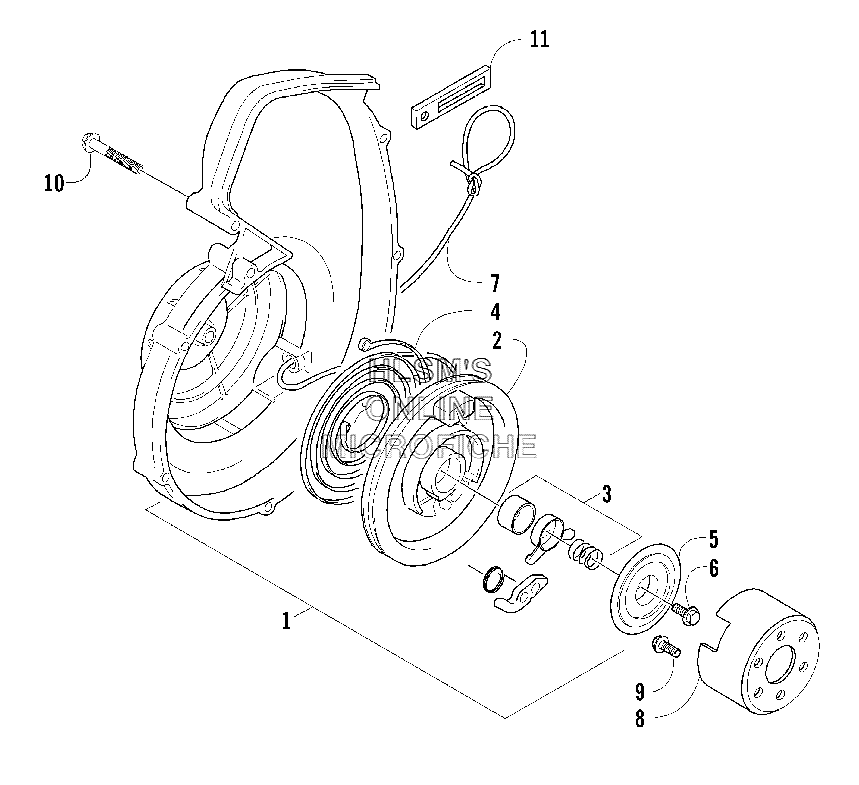

RECOIL STARTER для Arctic Cat Z 570 LX (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
13006-687 STARTER ASSY (INC. 2, 6)STARTER ASSY (INC. 2, 6)
-
23006-090 ROLLER, STARTERROLLER, STARTER
-
33006-091 RATCHET SETRATCHET SET
-
43002-921 SPRINGSPRING
-
53006-092 PLATE, FRICTIONPLATE, FRICTION
-
63006-093 BOLTBOLT
-
73003-327 ROPE, STARTERROPE, STARTER
-
83006-020 PULLEY, STARTERPULLEY, STARTER
-
93006-463 BOLTBOLT
-
103006-094 BOLTBOLT
-
113002-964 CLAMP, WIRECLAMP, WIRE
