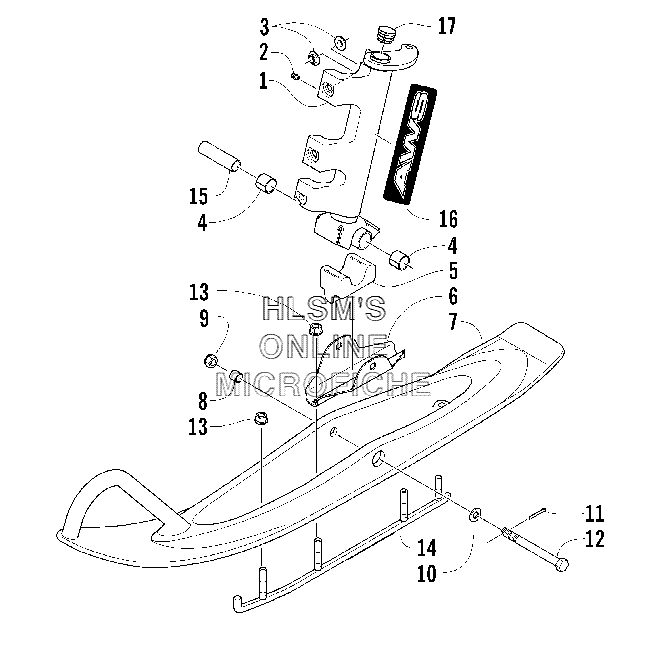

SKI AND SPINDLE ASSEMBLY для Arctic Cat Z 570 LX (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
12703-006 SPINDLE, STEERING (RIGHT) (INC. 2, 4)SPINDLE, STEERING (RIGHT) (INC. 2, 4)
-
12703-007 SPINDLE, STEERING (LEFT) (INC. 2, 4)SPINDLE, STEERING (LEFT) (INC. 2, 4)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
30603-647 INSERT, SPINDLEINSERT, SPINDLE
-
40603-158 BEARINGBEARING
-
51603-257 DAMPER, SKIDAMPER, SKI
-
61603-256 SADDLE, SKISADDLE, SKI
-
71603-231 SKI (INC. 8)SKI (INC. 8)
-
81603-258 INSERT, SKIINSERT, SKI
-
90123-296 NUT, LOCKNUT, LOCK
-
108050-307 WASHERWASHER
-
110123-458 PIN, COTTERPIN, COTTER
-
120623-776 SCREW, CAPSCREW, CAP
-
138047-486 NUT, LOCKNUT, LOCK
-
140703-623 WEARBARWEARBAR
-
152603-548 AXLE, SPINDLEAXLE, SPINDLE
-
166611-579 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
170623-831 CAP, SPINDLECAP, SPINDLE
